Grade 10 Physical Sciences · Matter and Materials

Draw Lewis diagrams

Draw Lewis dot diagrams showing valence electrons, shared pairs and lone pairs (water has two bonding pairs and two lone pairs).

past paper questions use it: 18 past paper questions use it
videos: 3 videos

Learn it: draw lewis diagrams

Pick one and watch it, then try the questions below. Videos load only when you tap play.

23) Lewis Diagrams Grade 10Kevinmathscience

Chemical Bonding: Covalent Bonding Lewis Dot DiagramsMiss Martins Maths and Science

Chemical Bonding: Ionic Bonding Lewis Dot DiagramsMiss Martins Maths and Science

Now try it on a real exam question

No sign-up. Takes 3 minutes.

Question WE3 · Siyavula Grade 11 Physical Sciences, 3.1 Chemical bonds, Worked example 3 · 2 marks

WE3 Represent water (

H_{2} O

) using a Lewis diagram(2)

Work it out on paper first. Then mark yourself with the official memo, one tick at a time.

More past paper questions: draw lewis diagrams

Work each one out first, then open the memo and check every tick.

3. Question 2.2.1 · November 2025 · Paper 2 · Provincial · 2 marks

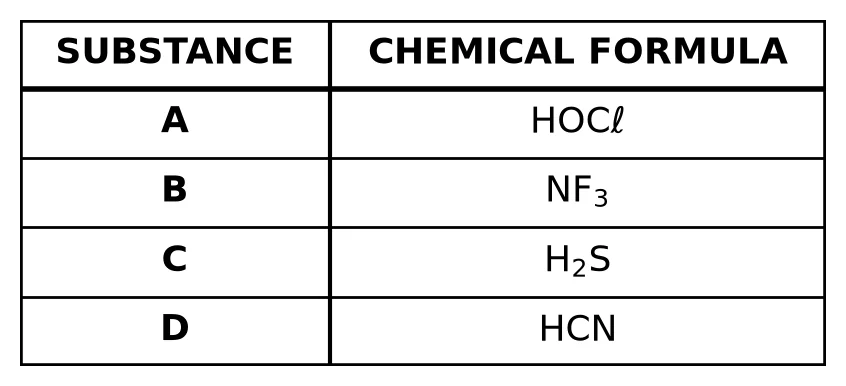

Consider the following substances (A–D) in the table below:
2.2 Draw the Lewis structures for the following molecules.
2.2.1 HOCl(2)
Show the memo (1 tick)Memo
1. ✓

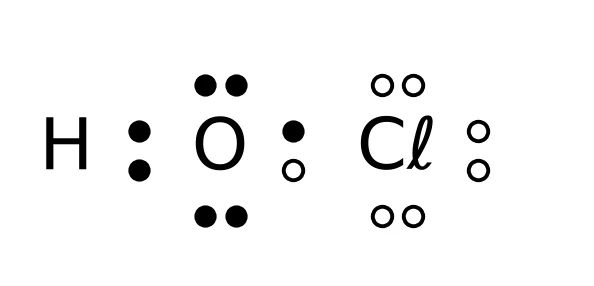

  Lewis structure of HOClH shares one pair with O; O shares one pair with Cl. O has two lone pairs and Cl has three lone pairs.
  H : O : Cl (as in the memo drawing).
  2 marks · Draw Lewis diagrams
4. Question 2.3.2 · November 2024 · Paper 2 · Provincial · 2 marks
Consider the following compounds.
2.3 Draw the Lewis structure of the following compounds:
2.3.2 $H_{2}$ S(2)
Show the memo (1 tick)Memo
1. ✓

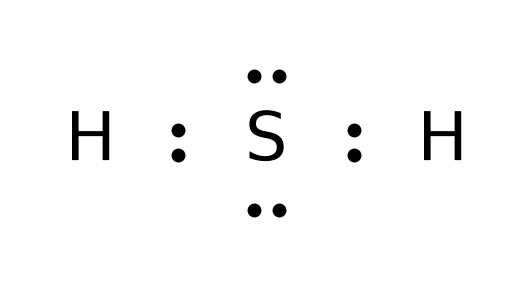

  Lewis structure of $H_{2}$ SH : S : H with one shared pair between S and each H, and two lone pairs on S (see the drawing).
  2 marks · Draw Lewis diagrams
5. Question 4.2.4 · November 2024 · Paper 2 · Provincial · 4 marks
4.2 Aluminium is a metal and a good conductor of electricity.

Answer the questions that follow.

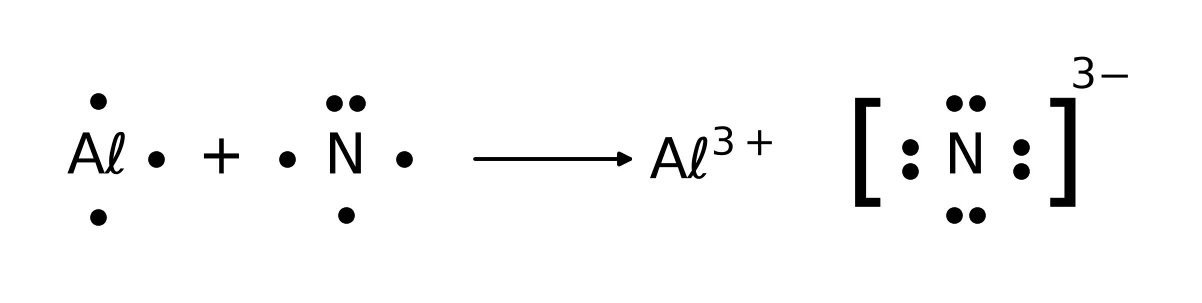

4.2.4 Use Lewis diagrams to show how the product is formed.(4)
Show the memo (4 ticks)Memo
1. ✓
  Lewis diagram of AℓAℓ with three valence electrons (three single dots).
  1 mark · Draw Lewis diagrams
2. ✓
  Lewis diagram of NN with five valence electrons (one pair and three single dots).
  1 mark · Draw Lewis diagrams
3. ✓
  Aluminium ion $A ℓ^{3 +}$ (no dots)
  1 mark · Draw Lewis diagrams
4. ✓
  Nitride ion $[N]^{3 -}$ in square brackets with eight electrons (four pairs)
  1 mark · Draw Lewis diagrams
6. Question 6.4.2 · November 2023 · Paper 2 · Provincial · 2 marks
In the reaction below, $3$ g of $Na_{2} CO_{3}$ were reacted with hydrochloric acid solution and an effervescence is observed.

$Na_{2} CO_{3} + HC ℓ \to NaC ℓ + CO_{2} + H_{2} O$
6.4 Draw Lewis dot diagrams for:
6.4.2 $H_{2} O$ (2)
Show the memo (1 tick)Memo
1. ✓

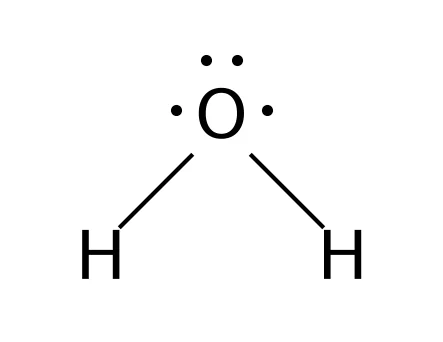

  Lewis diagram of H2OO in the centre bonded to two H atoms by single bonds (one shared pair each), with two lone pairs on O.
  2 marks · Draw Lewis diagrams
