Analytical Geometry Grade 12

Real past paper questions and answers from 2021 to 2025, with each memo split into the ticks examiners give. Try one, mark yourself, and see exactly which skill cost you marks.

past paper questions: 38 past paper questions
skills: 13 skills
videos: 13 videos

Try a real exam question

No sign-up. Takes 3 minutes.

Question 3.1 · May/June 2025 · Paper 2 · National (DBE) · 2 marks

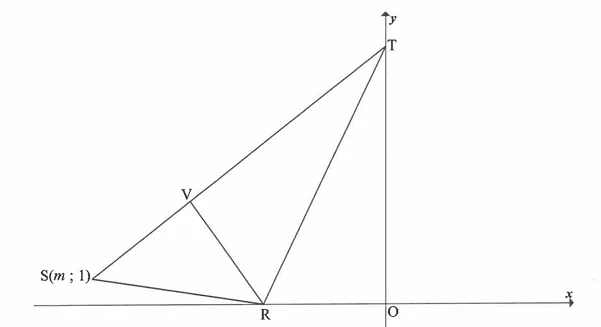

In the diagram below,

Δ SRT

is drawn where R lies on the x-axis and S lies to the left of R. T lies on the y-axis and the coordinates of S are

(m; 1)

.

The equation of RT is

2 x - y + 10 = 0

3.1 Calculate the coordinates of R.(2)

Work it out on paper first. Then mark yourself with the official memo, one tick at a time.

What's in Analytical Geometry Grade 12

Each skill is one thing a memo gives a tick for. Tap a skill for its own questions, notes and videos.

The Circle38 past paper questions

More Analytical Geometry Grade 12 questions and answers

Try each one on paper before you open the memo.

1. Question 5.2 · March 2022 · Provincial · 3 marks

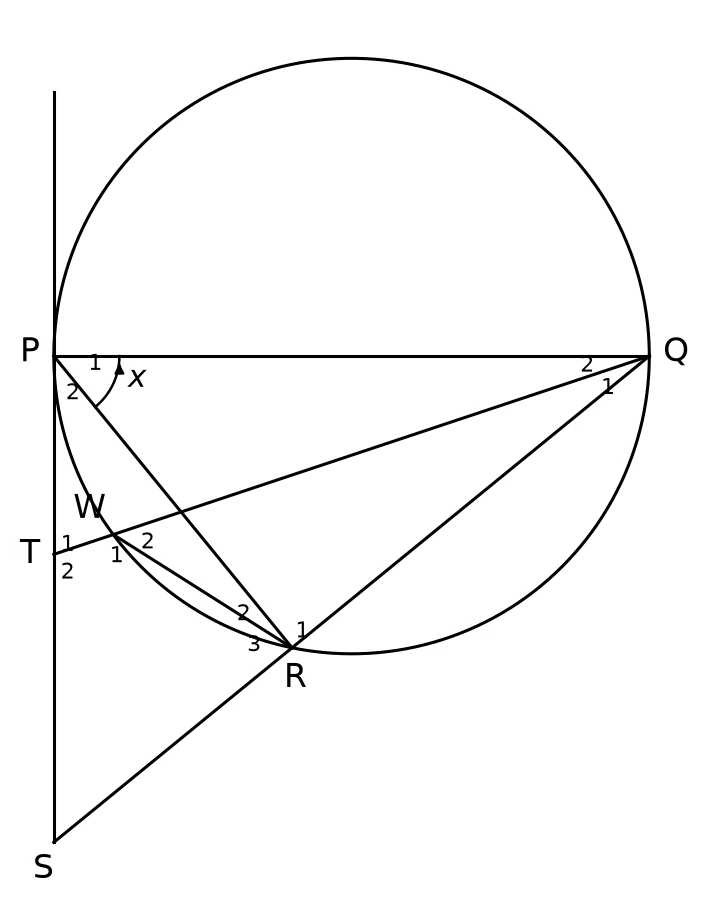

In the figure: $PQ$ is the diameter of the circle. $SP$ is the tangent to the circle at $P$ . $QT$ intersects the circle at $W$ and with $T$ on the line $SP$ . $QS$ intersects the circle at $R$ . $\hat{P}_{1} = x$ .
5.2 Prove $\hat{S} = x$ .(3)
Show the memo (3 ticks)Memo
1. ✓
  Calculate angle QIn $Δ PQR$ : $P \hat{Q} R = 9 0^{\circ} - x$ (Sum of angles in $Δ$ )
  1 mark · Use angle sum of a triangle
2. ✓
  Identify tangent perpendicular to diameter $S \hat{P} Q = 9 0^{\circ}$ (Diameter $⊥$ tangent)
  1 mark · Use radius and tangent facts
3. ✓
  Calculate SIn $Δ SPQ$ : $\hat{S} + 9 0^{\circ} + (9 0^{\circ} - x) = 18 0^{\circ}$
  $\hat{S} = x$
  1 mark · Use angle sum of a triangle
2. Question 7.1 · March 2022 · Provincial · 4 marks

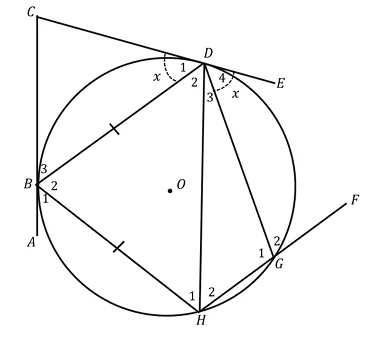

In the diagram, $A C$ and $CE$ are tangents to the circle with centre $O$ . $B, D, G$ and $H$ are points on the circumference. $H G$ is produced to $F$ . $B D = B H$ . $\hat{D}_{1} = \hat{D}_{4} = x$ .
7.1 Find four other angles equal to $x$ .(4)
Show the memo (4 ticks)Memo
1. ✓
  Find B3 $\hat{B}_{3} = x$ (Tangents from same point $C$ , so $CB = C D$ , $Δ CB D$ is isosceles / Tan-chord theorem implies $\hat{B}_{3} = \hat{D}_{1}$ but logic usually $CB = C D$ )
  1 mark · Use isosceles triangle properties
2. ✓
  Find H1 $\hat{H}_{1} = \hat{B}_{3} = x$ (Tan-chord theorem with tangent $A C$ and chord $B D$ - Wait, $A C$ touches at $B$ )
  1 mark · Use the tan-chord theorem
3. ✓
  Find D2 $\hat{D}_{2} = \hat{H}_{1} = x$ (Angles opposite equal sides, $B D = B H$ )
  1 mark · Use isosceles triangle properties
4. ✓
  Find H2 $\hat{H}_{2} = \hat{D}_{4} = x$ (Tan-chord theorem with tangent $CE$ and chord $D G$ - wait, tangent is at $D$ , chord $D G$ subtends $H_{2}$ . Correct)
  1 mark · Use the tan-chord theorem
3. Question 5.2.1 · March 2022 · Provincial · 2 marks

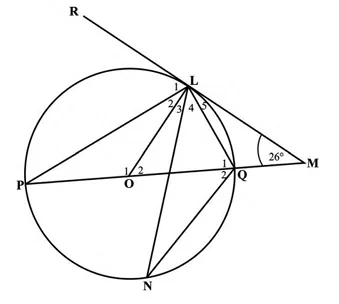

5.2 In the diagram, O is the centre of the circle and L is a point on the circumference. RLM is a tangent at L.
5.2.1 Determine with reasons the size of $\hat{O}_{2}$ .(2)
Show the memo (2 ticks)Memo
1. ✓
  Use tangent-radius theorem $M \hat{L} O = 9 0^{\circ}$ (radius $⊥$ tangent)
  1 mark · Use radius and tangent facts
2. ✓
  Calculate angle in triangle $\hat{O}_{2} = 18 0^{\circ} - (9 0^{\circ} + 2 6^{\circ}) = 6 4^{\circ}$ (sum of $∠$ s in $Δ$ )
  1 mark · Use angle sum of a triangle
4. Question 6.1 · March 2022 · Provincial · 5 marks

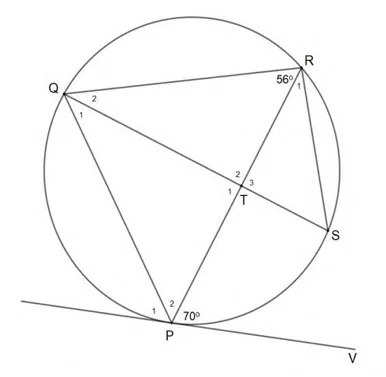

In the diagram below, P, Q, R and S are points on the circle. QS and PR intersect at point T. The line from V is a tangent at P. $Q \hat{R} P = 5 6^{\circ}$ and $R \hat{P} V = 7 0^{\circ}$ .
6.1 Find the size of $R \hat{S} T$ .(5)
Show the memo (3 ticks)Memo
1. ✓
  Use tan-chord theorem $R \hat{P} V = R \hat{Q} P = 7 0^{\circ}$
  2 marks · Use the tan-chord theorem
2. ✓
  Sum of angles in triangle PQR $\hat{P}_{2} = 18 0^{\circ} - (7 0^{\circ} + 5 6^{\circ}) = 5 4^{\circ}$
  1 mark · Use angle sum of a triangle
3. ✓
  Angles in same segment $R \hat{S} T = \hat{P}_{2} = 5 4^{\circ}$
  2 marks · Use angles in the same segment
5. Question 2.2.1 · March 2021 · Provincial · 3 marks

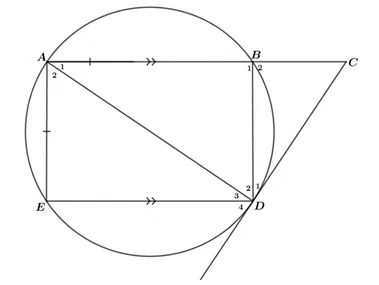

2.2 In the diagram, a circle with a tangent CD is drawn. A, B, D, and E are points on the circumference of the circle. $A E = A B$ and $A B ∥ E D$ . $\hat{A}_{1} = x$ .
2.2.1 Give, with reasons, three more angles equal to $x$ .(3)
Show the memo (3 ticks)Memo
1. ✓
  Identify first angle (D1) $\hat{D}_{1} = \hat{A}_{1} = x$ (tan chord theorem)
  1 mark · Use the tan-chord theorem
2. ✓
  Identify second angle (D3) $\hat{D}_{3} = \hat{A}_{1} = x$ (Alt. $∠$ s; $A B ∥ E D$ )
  1 mark · Use angles on parallel lines
3. ✓
  Identify third angle (D2) $\hat{D}_{2} = \hat{D}_{3} = x$ (equal chords equal angles OR angles subtended by equal chords $A E = A B$ )
  1 mark · Use angles in the same segment
