Question 5.1 · June 2024 · Paper 1 · Provincial · 3 marks

Sketched below are the graphs of

f (x) = a x^{2} + b x + c

and

g (x) = m x + k

. The x-intercepts of f are at points A and C. The graphs of f and g intersect at points A and B respectively. Point P is the turning point of f. Q is a point on g such that line PQ is parallel to the y-axis. Points given:

A (- 4; 0)

C (2; 0)

B (0; 8)

5.1 Determine the equation of g.(3)

Work it out on paper first. Then mark yourself with the official memo, one tick at a time.

What's in Analytical Geometry Grade 11

Each skill is one thing a memo gives a tick for. Tap a skill for its own questions, notes and videos.

Analytical Geometry48 past paper questions

More Analytical Geometry Grade 11 questions and answers

Try each one on paper before you open the memo.

1. Question 3.1.1 · March 2025 · Paper 1 · Provincial · 2 marks

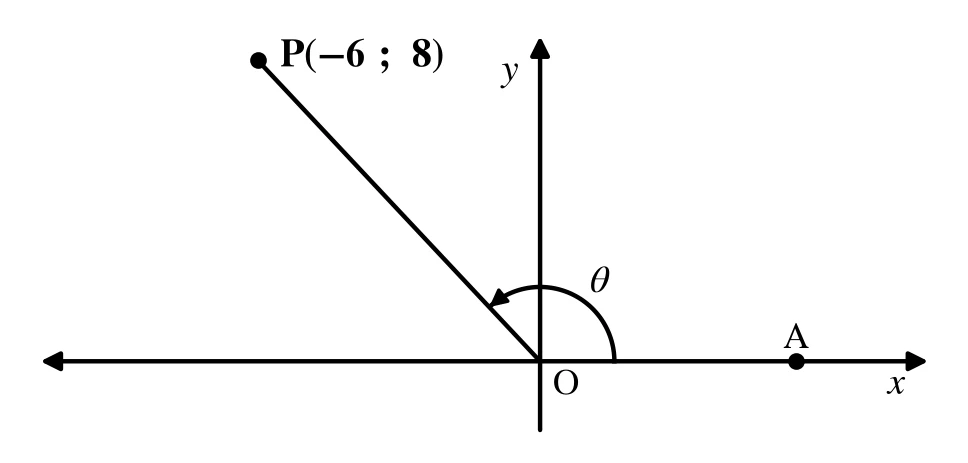

In the diagram, $P (- 6; 8)$ is a point in the Cartesian plane. $A$ is the point on the positive x-axis. $∠ A OP = θ$ .
3.1 Determine, with the aid of a diagram, the following:
3.1.1 The length of OP.(2)
Show the memo (2 ticks)Memo
1. ✓
  Apply Pythagoras $r^{2} = x^{2} + y^{2}$
  $r^{2} = (- 6)^{2} + (8)^{2}$
  $r^{2} = 36 + 64 = 100$
  1 mark · Use the theorem of Pythagoras
2. ✓
  Calculate r $r = 10$
  1 mark · Use the theorem of Pythagoras
2. Question 3.1.1 · March 2024 · Paper 1 · Provincial · 2 marks
Do not use a calculator when answering Question 3.

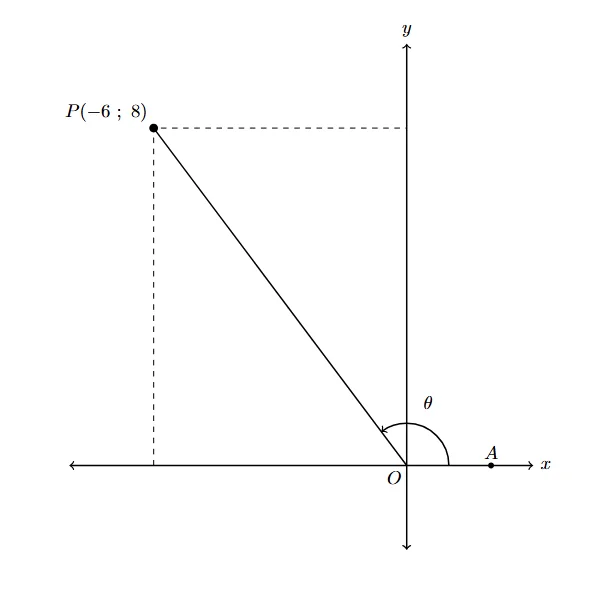

In the diagram, $P (- 6; 8)$ is a point in the Cartesian plane. A is a point on the positive x-axis. $∠ A OP = θ$ .
3.1 Determine, with the aid of the diagram, the following:
3.1.1 The length of OP.(2)
Show the memo (2 ticks)Memo
1. ✓
  Substitute into distance formula/Pythagoras $O P^{2} = (- 6)^{2} + (8)^{2}$
  $O P^{2} = 36 + 64 = 100$
  1 mark · Use the theorem of Pythagoras
2. ✓
  Answer $OP = 10$
  1 mark · Use the theorem of Pythagoras
3. Question 1.1 · June 2024 · Paper 2 · Provincial · 4 marks

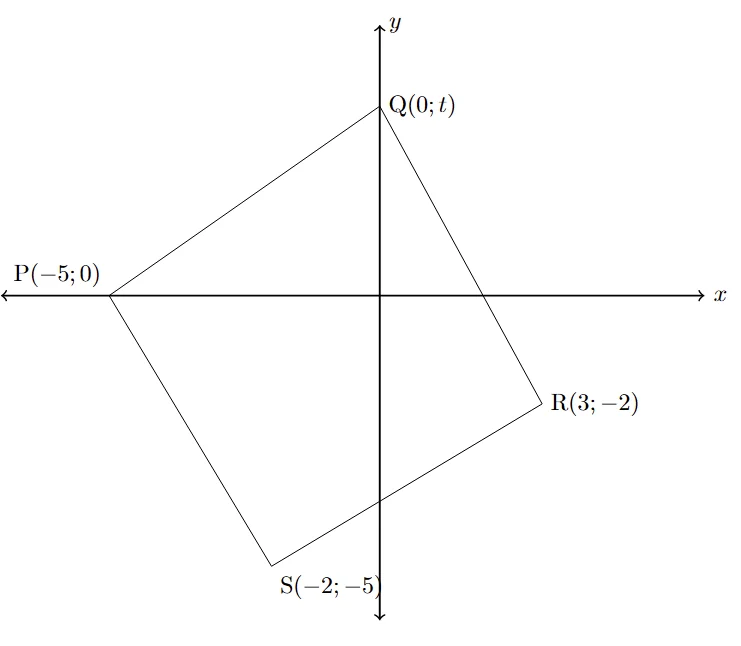

$PQRS$ is a quadrilateral with vertices $P (- 5; 0)$ , $Q (0; t)$ , $R (3; - 2)$ and $S (- 2; - 5)$ .
$P$ is on the x-axis and $Q$ is on the y-axis.
1.1 Determine the lengths of $PS$ and $RS$ .(4)
Show the memo (4 ticks)Memo
1. ✓
  Substitution into the distance formula for PS $PS = (- 2 + 5)^{2} + (- 5 - 0)^{2}$
  1 mark · Calculate distance between two points
2. ✓
  Length of PS $PS = 34$
  1 mark · Calculate distance between two points
3. ✓
  Substitution into the distance formula for RS $RS = (3 + 2)^{2} + (- 2 + 5)^{2}$
  1 mark · Calculate distance between two points
4. ✓
  Length of RS $RS = 34$
  1 mark · Calculate distance between two points
4. Question 3.1.1 · March 2023 · Paper 1 · Provincial · 2 marks

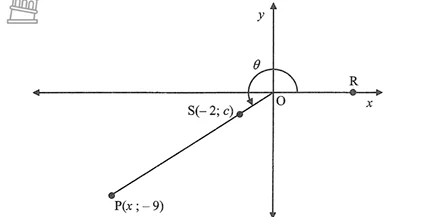

In the diagram, $P (x; - 9)$ is a point in the Cartesian plane such that $OP = 15$ units. $S (- 2; c)$ lies on $OP$ . $R$ is a point on the positive x-axis and $R \hat{O} P = θ$ .
3.1 Determine, with the aid of the diagram, the following:
3.1.1 The value of x.(2)
Show the memo (2 ticks)Memo
1. ✓
  Use Pythagoras theorem $x^{2} + y^{2} = r^{2}$
  $x^{2} + (- 9)^{2} = 1 5^{2}$
  $x^{2} = 225 - 81 = 144$
  1 mark · Use the theorem of Pythagoras
2. ✓
  Determine sign based on quadrantP is in 3rd quadrant (diagram shows x < 0).
  $x = - 12$
  1 mark · Decide the quadrant and sign
5. Question 3.3.4 · March 2022 · Provincial · 3 marks
Give reasons for your statements and calculations in Question 3.

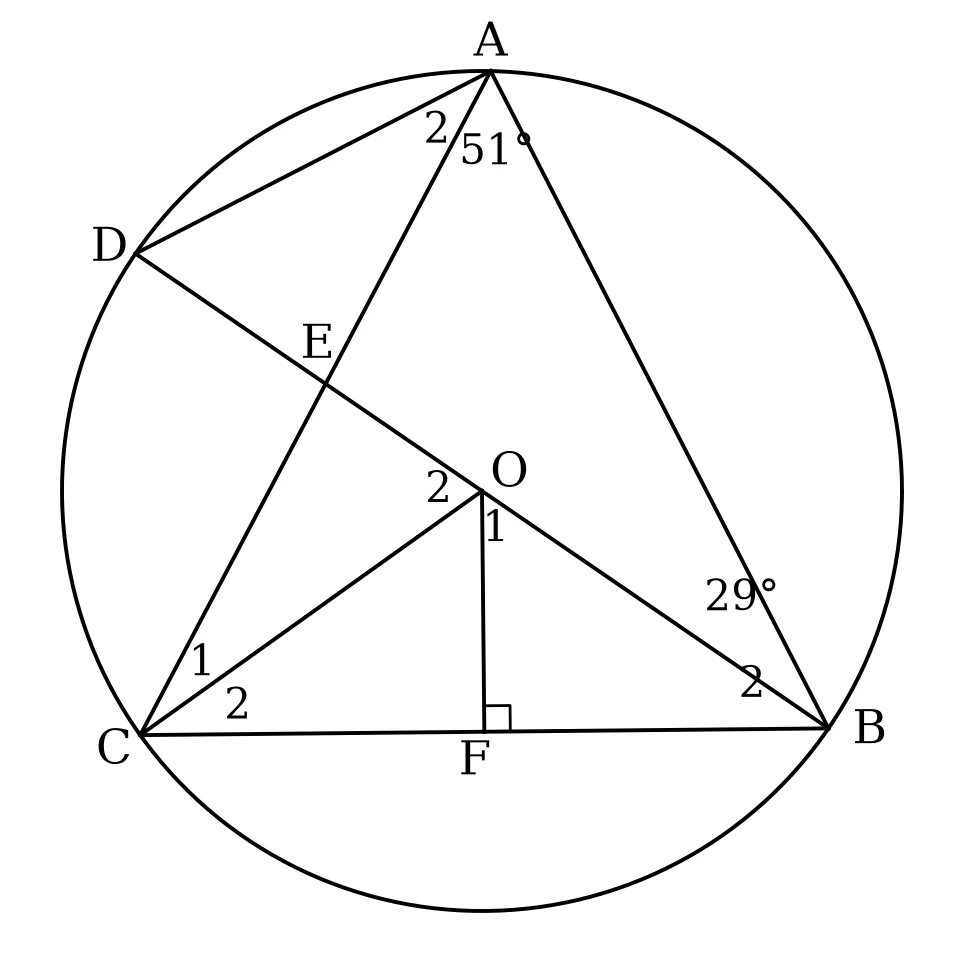

3.3 In the diagram, O is centre of the circle. Points A, B, C and D lie on the circumference of the circle. BOD is a diameter. $\hat{A}_{1} = 5 1^{\circ}$ and $\hat{B}_{1} = 2 9^{\circ}$ . A line is drawn from O to F such that the length of BC = 24 m and radius of the circle centred O is 13 m.
3.3.4 Determine the length of OF.(3)
Show the memo (3 ticks)Memo
1. ✓
  Statement and reason $CF = \frac{1}{2} (24) = 12$ m (line from centre $⊥$ to chord bisects chord)
  1 mark · Use line from centre to chord
2. ✓
  Substitute into Pythagoras $O C^{2} = C F^{2} + O F^{2}$ (Pythagoras) $1 3^{2} = 1 2^{2} + O F^{2}$
  1 mark · Use the theorem of Pythagoras
3. ✓
  Answer $O F^{2} = 169 - 144 = 25$ $OF = 5$ m
  1 mark · Use the theorem of Pythagoras
