Grade 10 Maths · Analytical Geometry

Use parallel and perpendicular gradients

Use the fact that parallel lines have equal gradients and perpendicular lines have gradients that multiply to −1, for example 2 and −½.

past paper questions use it: 15 past paper questions use it
videos: 3 videos

Learn it: use parallel and perpendicular gradients

Pick one and watch it, then try the questions below. Videos load only when you tap play.

Analytical Geometry Grade 10: Perpendicular LinesKevinmathscience

How to Find Equation of Straight Line grade 10 maths: Parallel linesKevinmathscience

Analytical Geometry - Parallel and Perpendicular Lines (Grade 10 to 12 Math, Paper 2)MatheNatic

Now try it on a real exam question

No sign-up. Takes 3 minutes.

Question 4.2 · May/June 2025 · Paper 2 · National (DBE) · 4 marks

In the diagram, M is the centre of the circle having equation

(x - 3)^{2} + y^{2} = 25

E (- 1; 3)

and T are points on the circle.

EC is a tangent to the circle at E and cuts the x-axis at D.

E D = \frac{15}{4}

units. MT is produced to meet the tangent at

C (- 7; p)

4.2 Determine the equation of the tangent EC in the form

y = m x + c

.(4)

Work it out on paper first. Then mark yourself with the official memo, one tick at a time.

More past paper questions: use parallel and perpendicular gradients

Work each one out first, then open the memo and check every tick.

3. Question 2.4 · June 2024 · Paper 2 · Provincial · 3 marks

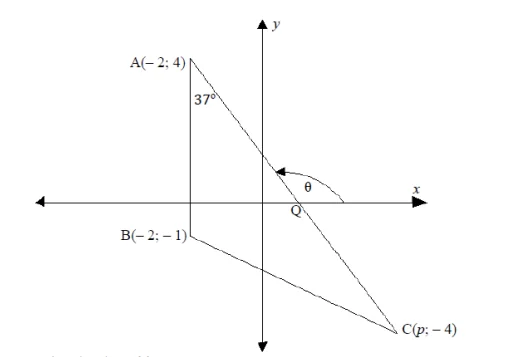

In the diagram below, $A (- 2; 4)$ , $B (- 2; - 1)$ and $C (p; - 4)$ are the vertices of $Δ A BC$ . $Q$ is the x-intercept of the line $A C$ .
$θ$ is the angle of inclination of $A C$ and $B \hat{A} C = 3 7^{\circ}$ .
2.4 Determine the integral value of $p$ if the points $A$ , $Q$ and $C$ are collinear.(3)
Show the memo (3 ticks)Memo
1. ✓
  METHOD 1: Gradient AC set equal to m (method) $\frac{- 4 - 4}{p + 2} = - 1, 33$
  1 mark · Use parallel and perpendicular gradients
2. ✓
  Simplification $- 8 = - 1, 33 p - 2, 66$ $1, 33 p = 5, 34$
  1 mark · Solve a linear equation
3. ✓
  Answer $p = 4$
  1 mark · Use parallel and perpendicular gradients
4. Question 1.5 · June 2024 · Paper 2 · Provincial · 4 marks
$PQRS$ is a quadrilateral with vertices $P (- 5; 0)$ , $Q (0; t)$ , $R (3; - 2)$ and $S (- 2; - 5)$ .
$P$ is on the x-axis and $Q$ is on the y-axis.
1.5 Calculate the size of $P \hat{Q} R$ .(4)
Show the memo (4 ticks)Memo
1. ✓
  METHOD 1: Substitution for the gradient of QR $m_{QR} = \frac{- 2 - 3}{3 - 0}$
  1 mark · Calculate gradient between two points
2. ✓
  Gradient of QR $m_{QR} = - \frac{5}{3}$
  1 mark · Calculate gradient between two points
3. ✓
  Product of the gradients (method) $m_{PQ} \times m_{QR} = \frac{3}{5} \times (- \frac{5}{3}) = - 1$
  1 mark · Use parallel and perpendicular gradients
4. ✓
  Answer $PQ ⊥ QR$ , so $P \hat{Q} R = 9 0^{\circ}$
  1 mark · Use parallel and perpendicular gradients
5. Question 3.5 · March 2016 · Provincial · 3 marks
3.5 If the following points $B (x; - 3)$ , $E (- 4; 5)$ and $F (2; 2)$ are collinear, calculate the value of x.(3)
Show the memo (3 ticks)Memo
1. ✓
  Equating gradients (M) $m_{BE} = m_{EF}$ : $\frac{5 - ( - 3 )}{- 4 - x} = \frac{2 - 5}{2 - ( - 4 )}$
  1 mark · Use parallel and perpendicular gradients
2. ✓
  Correct gradients $\frac{8}{- 4 - x} = - \frac{1}{2}$
  1 mark · Calculate gradient between two points
3. ✓
  Answer $16 = - 1 (- 4 - x) = 4 + x$ , so $x = 12$
  1 mark · Use parallel and perpendicular gradients
6. Question 5.5 · June 2024 · Paper 1 · Provincial · 3 marks
Sketched below are the graphs of $f (x) = a x^{2} + b x + c$ and $g (x) = m x + k$ . The x-intercepts of f are at points A and C. The graphs of f and g intersect at points A and B respectively. Point P is the turning point of f. Q is a point on g such that line PQ is parallel to the y-axis. Points given: $A (- 4; 0)$ , $C (2; 0)$ , $B (0; 8)$ .
5.5 Determine the equation of a line p perpendicular to g passing through point C.(3)
Show the memo (3 ticks)Memo
1. ✓
  Determine gradient $m_{g} = 2$
  Perpendicular gradient $m_{p} = - \frac{1}{2}$
  1 mark · Use parallel and perpendicular gradients
2. ✓
  Substitute point C(2;0) $y - 0 = - \frac{1}{2} (x - 2)$
  1 mark · Find the equation of a line
3. ✓
  Standard form $y = - \frac{1}{2} x + 1$
  1 mark · Find the equation of a line
