Grade 10 Maths · Analytical Geometry

Calculate the mid-point of a segment

Find the point halfway between two points by averaging their coordinates, for example (2; 4) and (6; 8) have mid-point (4; 6).

past paper questions use it: 9 past paper questions use it
videos: 3 videos

Learn it: calculate the mid-point of a segment

Pick one and watch it, then try the questions below. Videos load only when you tap play.

Analytical Geometry Grade 10: MidpointKevinmathscience

Analytical Geometry Midpoint formula: Grade 10 MathsMiss Martins Maths and Science

Grade 11 analytical geometry: 4th Co-ordinate of parallelogramKevinmathscience

Now try it on a real exam question

No sign-up. Takes 3 minutes.

Question 1.2 · June 2024 · Paper 2 · Provincial · 3 marks

In the figure below,

A (- 5; 2)

and

B (4; - 2)

are points on a line segment AB. Diagram for this question

1.2 Determine the coordinates of the midpoint of AB.(3)

Work it out on paper first. Then mark yourself with the official memo, one tick at a time.

More past paper questions: calculate the mid-point of a segment

Work each one out first, then open the memo and check every tick.

3. Question 1.2 · June 2024 · Paper 2 · Provincial · 2 marks
$PQRS$ is a quadrilateral with vertices $P (- 5; 0)$ , $Q (0; t)$ , $R (3; - 2)$ and $S (- 2; - 5)$ .
$P$ is on the x-axis and $Q$ is on the y-axis.
1.2 Calculate the coordinates $M$ , the midpoint of $PR$ .(2)
Show the memo (2 ticks)Memo
1. ✓
  x-value of M $M (\frac{- 5 + 3}{2}; \frac{0 - 2}{2})$ $x_{M} = - 1$
  1 mark · Calculate the mid-point of a segment
2. ✓
  y-value of M $y_{M} = - 1$ , so $M (- 1; - 1)$
  1 mark · Calculate the mid-point of a segment
4. Question 1.2 · June 2024 · Paper 2 · Provincial · 2 marks
In the diagram below, $A (- 2; 2)$ , $B (- 4; - 6)$ , $C (4; - 2)$ and $E (6; y)$ are the vertices of a quadrilateral with $A E ∣∣ BC$ . $D$ lies on $BC$ such that $A D ⊥ BC$ and $A C$ is drawn. $M (x; 2)$ is a point on line $EC$ .
1.2 If $M$ is the midpoint of $EC$ , determine the value of $x$ and $y$ .(2)
Show the memo (2 ticks)Memo
1. ✓
  Use midpoint formula for y $\frac{y + ( - 2 )}{2} = 2 ⟹ y - 2 = 4 ⟹ y = 6$
  1 mark · Calculate the mid-point of a segment
2. ✓
  Use midpoint formula for x $\frac{6 + 4}{2} = x ⟹ x = 5$
  1 mark · Calculate the mid-point of a segment
5. Question 3.3.3 · March 2016 · Provincial · 2 marks

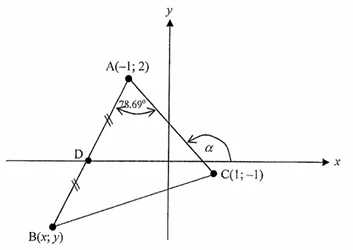

3.3 In the diagram below, $A (- 1; 2)$ , $B (x; y)$ and $C (1; - 1)$ are the vertices of a triangle. D is the x-intercept and the midpoint of AB. $B \hat{A} C$ is $78, 6 9^{\circ}$ .
3.3.3 Determine the coordinates of B.(2)
Show the memo (2 ticks)Memo
1. ✓
  x-coordinate of B $\frac{- 1 + x _{B}}{2} = - 3 \Rightarrow x_{B} = - 5$
  1 mark · Calculate the mid-point of a segment
2. ✓
  y-coordinate of B $\frac{2 + y _{B}}{2} = 0 \Rightarrow y_{B} = - 2$
  $B (- 5; - 2)$
  1 mark · Calculate the mid-point of a segment
6. Question 4.5 · May/June 2025 · Paper 2 · National (DBE) · 3 marks
In the diagram, M is the centre of the circle having equation $(x - 3)^{2} + y^{2} = 25$ . $E (- 1; 3)$ and T are points on the circle.

EC is a tangent to the circle at E and cuts the x-axis at D. $E D = \frac{15}{4}$ units. MT is produced to meet the tangent at $C (- 7; p)$ .
4.5 Calculate the coordinates of S if SEMC is a parallelogram and $x_{S} < 0$ .(3)
Show the memo (1 tick)Memo
1. ✓
  METHOD 1: Using translation propertiesIn parallelogram SEMC, vector $ME = v ec t or CS$ .
  Translation from M(3; 0) to E(-1; 3):
  $x : 3 \to - 1$ (Subtract 4)
  $y : 0 \to 3$ (Add 3)

  Apply the same translation to C(-7; -5) to find S:
  $x_{S} = - 7 - 4 = - 11$
  $y_{S} = - 5 + 3 = - 2$
  $∴ S (- 11; - 2)$
  3 marks · Reflect, translate or rotate a point
