Grade 10 Maths · Functions

Find the x-intercepts

Find where a graph cuts the x-axis by putting y = 0 and solving (for example y = x² − 4 cuts at (−2; 0) and (2; 0)).

past paper questions use it: 29 past paper questions use it
videos: 3 videos

Learn it: find the x-intercepts

Pick one and watch it, then try the questions below. Videos load only when you tap play.

Grade 9 Mathematics - Calculating the x and y intercepts of a straight lineMrs Townsend Mathematics - South Africa

Draw Parabola Grade 11 | Part 1 | Grade 11 FunctionsKevinmathscience

How To Find The X and Y Intercepts of a LineThe Organic Chemistry Tutor

Now try it on a real exam question

No sign-up. Takes 3 minutes.

Question 3.1 · May/June 2025 · Paper 2 · National (DBE) · 2 marks

In the diagram below,

Δ SRT

is drawn where R lies on the x-axis and S lies to the left of R. T lies on the y-axis and the coordinates of S are

(m; 1)

.

The equation of RT is

2 x - y + 10 = 0

3.1 Calculate the coordinates of R.(2)

Work it out on paper first. Then mark yourself with the official memo, one tick at a time.

More past paper questions: find the x-intercepts

Work each one out first, then open the memo and check every tick.

3. Question 6.2 · May/June 2024 · Paper 1 · National (DBE) · 3 marks
The graphs of $f (x) = x^{2} - 2 x - 3$ and $g (x) = m x + c$ are drawn below. D and E are the $x$ -intercepts and P is the $y$ -intercept of $f$ . The turning point of $f$ is T $(1; - 4)$ . The graphs of $f$ and $g$ intersect at P and E.
6.2 Calculate the coordinates of D and E.(3)
Show the memo (3 ticks)Memo
1. ✓
  Equate equation to zero $x^{2} - 2 x - 3 = 0$
  1 mark · Find the x-intercepts
2. ✓
  Both x-values $(x - 3) (x + 1) = 0$
  $x = 3$ or $x = - 1$
  1 mark · Solve a quadratic by factorising
3. ✓
  Final coordinates $D (- 1; 0), E (3; 0)$
  1 mark · Find the x-intercepts
4. Question 4.4 · May/June 2025 · Paper 1 · National (DBE) · 4 marks
The graph of $f (x) = \frac{4}{x - 3} + 4$ is drawn below. M is the point where the asymptotes of $f$ intersect. C and D are the x- and y-intercepts respectively of $f$ . A is the point on $f$ that is closest to M.
4.4 Determine the values of $x$ for which $f (x) \leq 0$ .(4)
Show the memo (2 ticks)Memo
1. ✓
  Find the x-intercept C by equating f(x) to 0 $\frac{4}{x - 3} + 4 = 0$
  $\frac{4}{x - 3} = - 4$
  $4 = - 4 (x - 3)$
  $- 1 = x - 3$
  $x = 2$
  $C (2; 0)$
  2 marks · Find the x-intercepts
2. ✓
  Determine interval from the graphFrom the graph, $f (x) \leq 0$ occurs between the x-intercept and the vertical asymptote.
  $2 \leq x < 3$
  2 marks · Solve an inequality from a graph
5. Question 7.4.2 · May/June 2025 · Paper 2 · National (DBE) · 3 marks
In the diagram, the graphs of $f (x) = 2 cos x + 1$ and $g (x) = sin 2 x$ are drawn for the interval $x \in [- 18 0^{\circ}; 18 0^{\circ}]$ .
7.4 Use the graphs to determine the values of x, in the interval $x \in [- 18 0^{\circ}; 18 0^{\circ}]$ for which:
7.4.2 $cos x \leq - \frac{1}{2}$ (3)
Show the memo (3 ticks)Memo
1. ✓
  Relate the inequality to the given graph f(x) $cos x \leq - \frac{1}{2}$
  Multiply by 2:
  $2 cos x \leq - 1$
  Add 1 to both sides:
  $2 cos x + 1 \leq 0$
  This means we are looking for where $f (x) \leq 0$ .
  1 mark · Solve an inequality from a graph
2. ✓
  Find the x-intercepts of f(x) $2 cos x + 1 = 0$
  $cos x = - \frac{1}{2}$
  Reference angle $= 6 0^{\circ}$
  $x = 18 0^{\circ} - 6 0^{\circ} = 12 0^{\circ}$
  $x = - 18 0^{\circ} + 6 0^{\circ} = - 12 0^{\circ}$
  1 mark · Find the x-intercepts
3. ✓
  Determine the intervals where the graph is below or on the x-axis $x \in [- 18 0^{\circ}; - 12 0^{\circ}] \cup [12 0^{\circ}; 18 0^{\circ}]$

  OR

  $- 18 0^{\circ} \leq x \leq - 12 0^{\circ}$ or $12 0^{\circ} \leq x \leq 18 0^{\circ}$
  1 mark · Solve an inequality from a graph
6. Question 3.2.1 · March 2025 · Provincial · 2 marks

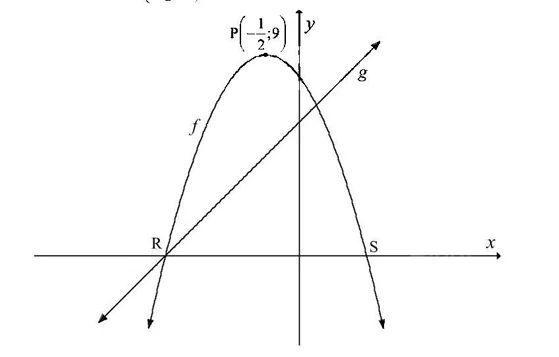

3.2 Sketched below is the parabola $f$ and the straight line $g (x) = 3 x + 6$ . R and S are the x-intercepts of $f$ , and $P (- \frac{1}{2}; 9)$ is its turning point. $g$ has its x-intercept at R.
3.2.1 Calculate the coordinates of R.(2)
Show the memo (2 ticks)Memo
1. ✓
  Solve for x-intercept of g $3 x + 6 = 0$
  $3 x = - 6 \to x = - 2$
  1 mark · Find the x-intercepts
2. ✓
  State coordinates $R (- 2; 0)$
  1 mark · Find the x-intercepts
