Euclidean Geometry Grade 12

Real past paper questions and answers from 2021 to 2025, with each memo split into the ticks examiners give. Try one, mark yourself, and see exactly which skill cost you marks.

past paper questions: 39 past paper questions
skills: 9 skills
videos: 9 videos

Try a real exam question

No sign-up. Takes 3 minutes.

Question 9.2 · March 2021 · Provincial · 6 marks

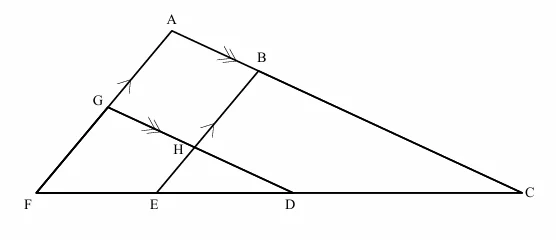

The diagram is the top view design of a new railway system. AF || BE and AC || GD.

\frac{A B}{BC} = \frac{4}{7}

and

\frac{A G}{A F} = \frac{9}{17}

9.2 If the straight line distance of the track from F to C is 374 km and it takes 50 hours to build one km of the track, determine the number of hours it will take to build the section from E to D.(6)

Work it out on paper first. Then mark yourself with the official memo, one tick at a time.

What's in Euclidean Geometry Grade 12

Each skill is one thing a memo gives a tick for. Tap a skill for its own questions, notes and videos.

Ratios and Proportion1 past paper questions

Similarity39 past paper questions

More Euclidean Geometry Grade 12 questions and answers

Try each one on paper before you open the memo.

1. Question 9.1.1 · May/June 2025 · Paper 2 · National (DBE) · 2 marks
Provide reasons for your statements in QUESTIONS 9 and 10.

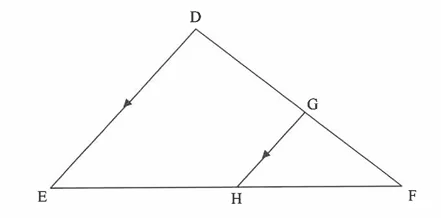

9.1 In the diagram, $Δ D EF$ is drawn. Line GH intersects DF and EF at G and H respectively such that $G H ∥ D E$ and $\frac{GF}{D G} = \frac{2}{5}$ .
9.1.1 Write down, with a reason, the value of $\frac{H F}{E H}$ .(2)
Show the memo (1 tick)Memo
1. ✓
  State the ratio with the correct reason $\frac{H F}{E H} = \frac{GF}{G D} = \frac{2}{5}$

  Reason: line $∥$ one side of $Δ$ OR proportionality theorem; $G H ∥ D E$
  2 marks · Use the proportionality theorem
2. Question 4.2.1 · March 2022 · Provincial · 3 marks

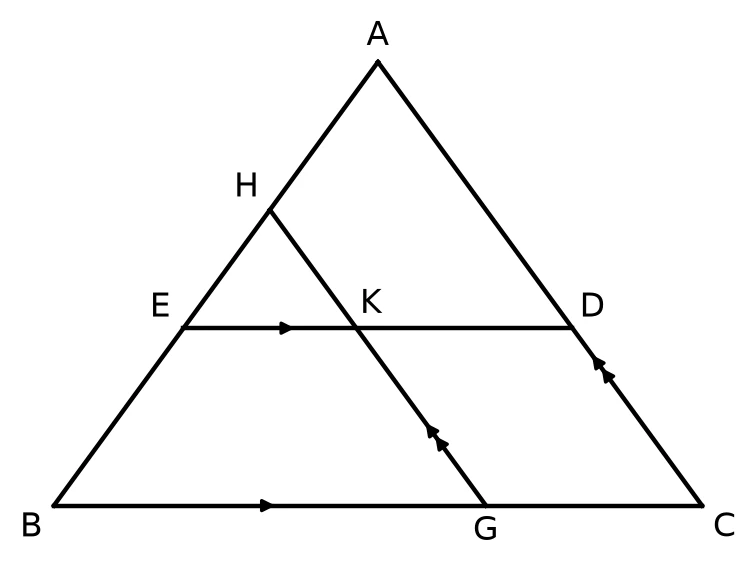

4.2 In the figure, $Δ A BC$ has $H G ∥ A C$ and $E D ∥ BC$ . $E D$ and $H G$ intersect at $K$ . $\frac{A D}{D C} = \frac{3}{2}$ and $BG = 2 GC$ . $A B = 15$ units.
4.2.1 Determine with reasons the value of $A E$ .(3)
Show the memo (2 ticks)Memo
1. ✓
  Setup ratio using Proportionality Theorem $\frac{A E}{A B} = \frac{A D}{A C} = \frac{3}{5}$ (Prop. Thm; $E D ∥ BC$ )
  2 marks · Use the proportionality theorem
2. ✓
  Calculate length $\frac{A E}{15} = \frac{3}{5}$
  $A E = 9$ units
  1 mark · Use the proportionality theorem
3. Question 6.1 · March 2022 · Provincial · 5 marks

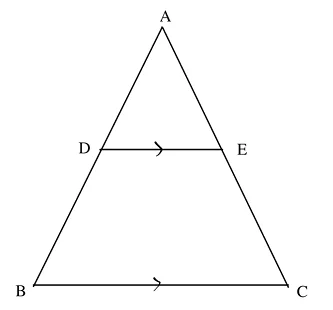

Given $△ A BC$ with $D E ∥ BC$ as shown in the figure.
6.1 Prove that: $\frac{A D}{D B} = \frac{A E}{EC}$ (5)
Show the memo (5 ticks)Memo
1. ✓
  ConstructionConstruct an altitude $h$ from $E$ to $A D$ (height $h_{1}$ ) and from $D$ to $A E$ (height $h_{2}$ ). Join $D C$ and $BE$ .
  1 mark · State the construction
2. ✓
  Area ratios on LHS $\frac{Area Δ A D E}{Area Δ D BE} = \frac{\frac{1}{2} A D \cdot h _{1}}{\frac{1}{2} D B \cdot h _{1}} = \frac{A D}{D B}$
  1 mark · Prove a theorem or formula
3. ✓
  Area ratios on RHS $\frac{Area Δ A D E}{Area Δ D EC} = \frac{\frac{1}{2} A E \cdot h _{2}}{\frac{1}{2} EC \cdot h _{2}} = \frac{A E}{EC}$
  1 mark · Prove a theorem or formula
4. ✓
  Equate areasArea $Δ D BE$ = Area $Δ D EC$ (Same base $D E$ , same height between parallel lines $D E ∥ BC$ )
  1 mark · Prove a theorem or formula
5. ✓
  Conclusion $∴ \frac{A D}{D B} = \frac{A E}{EC}$
  1 mark · Prove a theorem or formula
4. Question 7.1 · March 2022 · Provincial · 4 marks
In the diagram, $A C$ and $CE$ are tangents to the circle with centre $O$ . $B, D, G$ and $H$ are points on the circumference. $H G$ is produced to $F$ . $B D = B H$ . $\hat{D}_{1} = \hat{D}_{4} = x$ .
7.1 Find four other angles equal to $x$ .(4)
Show the memo (4 ticks)Memo
1. ✓
  Find B3 $\hat{B}_{3} = x$ (Tangents from same point $C$ , so $CB = C D$ , $Δ CB D$ is isosceles / Tan-chord theorem implies $\hat{B}_{3} = \hat{D}_{1}$ but logic usually $CB = C D$ )
  1 mark · Use isosceles triangle properties
2. ✓
  Find H1 $\hat{H}_{1} = \hat{B}_{3} = x$ (Tan-chord theorem with tangent $A C$ and chord $B D$ - Wait, $A C$ touches at $B$ )
  1 mark · Use the tan-chord theorem
3. ✓
  Find D2 $\hat{D}_{2} = \hat{H}_{1} = x$ (Angles opposite equal sides, $B D = B H$ )
  1 mark · Use isosceles triangle properties
4. ✓
  Find H2 $\hat{H}_{2} = \hat{D}_{4} = x$ (Tan-chord theorem with tangent $CE$ and chord $D G$ - wait, tangent is at $D$ , chord $D G$ subtends $H_{2}$ . Correct)
  1 mark · Use the tan-chord theorem
5. Question 7.1 · March 2022 · Provincial · 4 marks

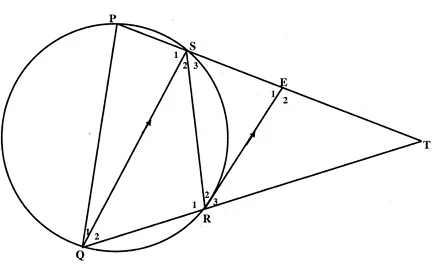

In the diagram, PQRS is a cyclic quadrilateral. PS and QR are produced to meet at T. RE is a tangent to the circle at R, with E on PT and RE || QS.
7.1 Prove that: $QR = RS$ (4)
Show the memo (3 ticks)Memo
1. ✓
  Use tan-chord theorem $\hat{R}_{2} = \hat{Q}_{2}$ (tan-chord theorem)
  2 marks · Use the tan-chord theorem
2. ✓
  Use parallel lines $\hat{S}_{2} = \hat{R}_{2}$ (alternate angles; $QS ∥ RE$ )
  1 mark · Use angles on parallel lines
3. ✓
  Conclude equality $∴ \hat{Q}_{2} = \hat{S}_{2}$ . Thus $QR = RS$ (sides opposite equal angles)
  1 mark · Use isosceles triangle properties
