Grade 11 Physical Sciences · Matter and Materials
Interpret the bond energy graph
Read bond length and bond energy from a graph of potential energy against distance between two atoms, and explain each part of the curve.
- past paper questions use it
- 4 past paper questions use it
- videos
- 3 videos
Learn it: interpret the bond energy graph
Pick one and watch it, then try the questions below. Videos load only when you tap play.
Now try it on a real exam question
No sign-up. Takes 3 minutes.
Question 1.7 · November 2024 · Paper 2 · Provincial · 2 marks

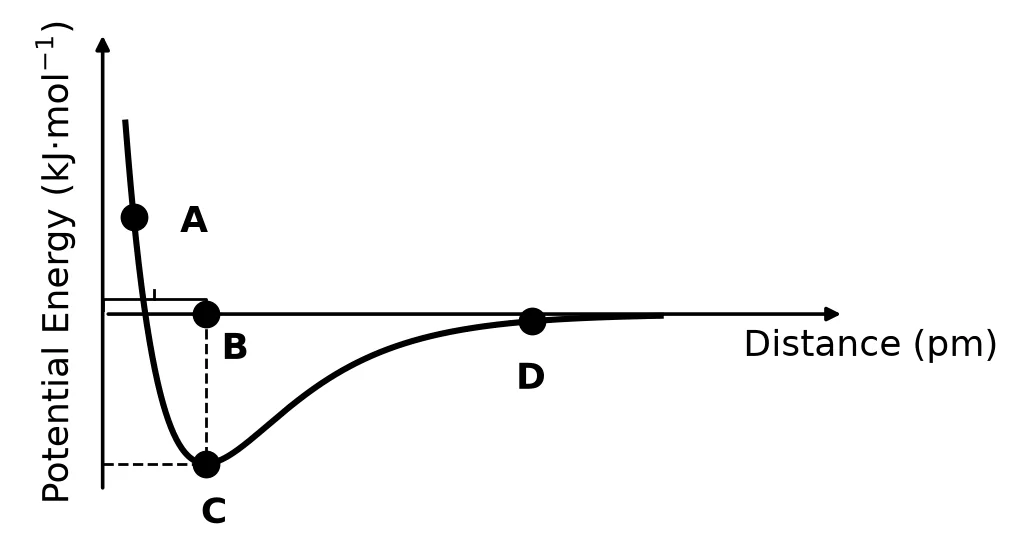

1.7 Consider the potential energy versus distance curve below.
(I) At point A the repulsive forces are stronger than attractive forces
(II) Point B represents bond length
(III) At point C net attractive and repulsive forces is zero
Which of the above statement(s) regarding the above curve is CORRECT?(2)
(I) At point A the repulsive forces are stronger than attractive forces
(II) Point B represents bond length
(III) At point C net attractive and repulsive forces is zero
Which of the above statement(s) regarding the above curve is CORRECT?(2)
