Grade 11 Maths · Statistics

Read values from an ogive

Read values off an ogive (cumulative frequency curve), for example the median, or how many learners scored less than 60.

past paper questions use it: 7 past paper questions use it
videos: 3 videos

Learn it: read values from an ogive

Pick one and watch it, then try the questions below. Videos load only when you tap play.

Median and interquartile range of cumulative frequency graphSum Help

How to Find Median and Quartiles from a Cumulative Frequency CurveYes, I Can Do Math

Ogive, Cumulative Frequency, Quartile and PercentileMr Ruel Tuition

Now try it on a real exam question

No sign-up. Takes 3 minutes.

Question 2.4 · November 2025 · Paper 2 · Provincial · 2 marks

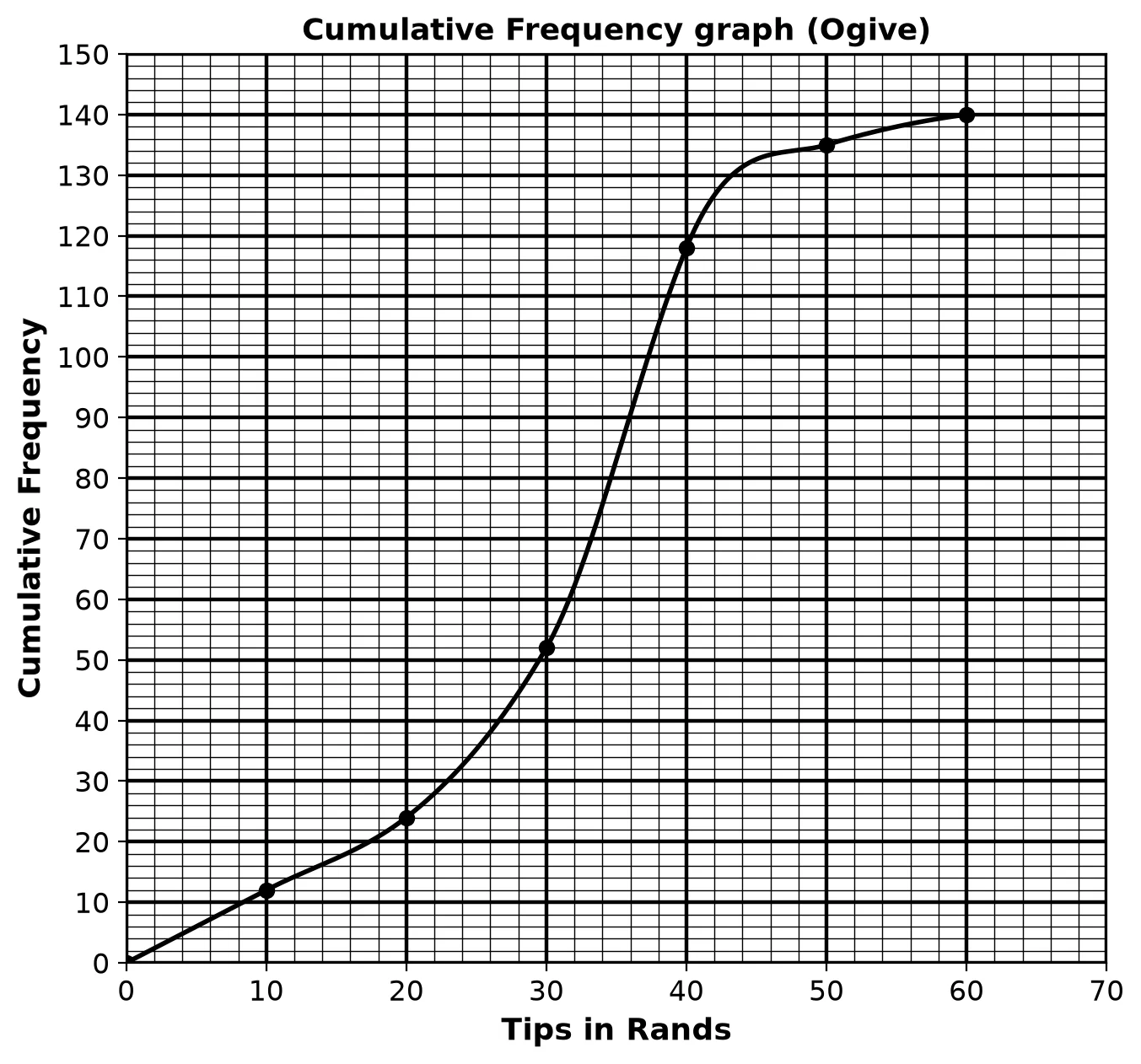

The cumulative frequency graph presents data from a survey conducted in a certain restaurant, detailing the distribution of tips earned by employees during their shift. $Diagram for this question$

2.4 Determine the number of employees that earned

R 20 \leq x \leq R 40

.(2)

Work it out on paper first. Then mark yourself with the official memo, one tick at a time.

More past paper questions: read values from an ogive

Work each one out first, then open the memo and check every tick.

3. Question 2.5 · November 2024 · Paper 2 · Provincial · 2 marks
The weight of the boxers who underwent fitness and health checks is shown in the frequency table below. $Diagram for this question$
It is further given that, for a boxer to qualify for the next upcoming match, he must have a mass that is in the interval of $75 < x \leq 100$ .
2.5 Using the cumulative frequency graph (ogive) and estimate the number of boxers that will qualify for the upcoming match.(2)
Show the memo (2 ticks)Memo
1. ✓
  15 or reading from the graphFrom the ogive: at $x = 100$ the cumulative frequency is about 15; at $x = 75$ it is 4.
  1 mark · Read values from an ogive
2. ✓
  AnswerNumber of boxers $= 15 - 4 = 11$
  1 mark · Read values from an ogive
4. Question WE9 · Siyavula Grade 11 Mathematics, 11.3 Ogives, Worked example 9 · 5 marks

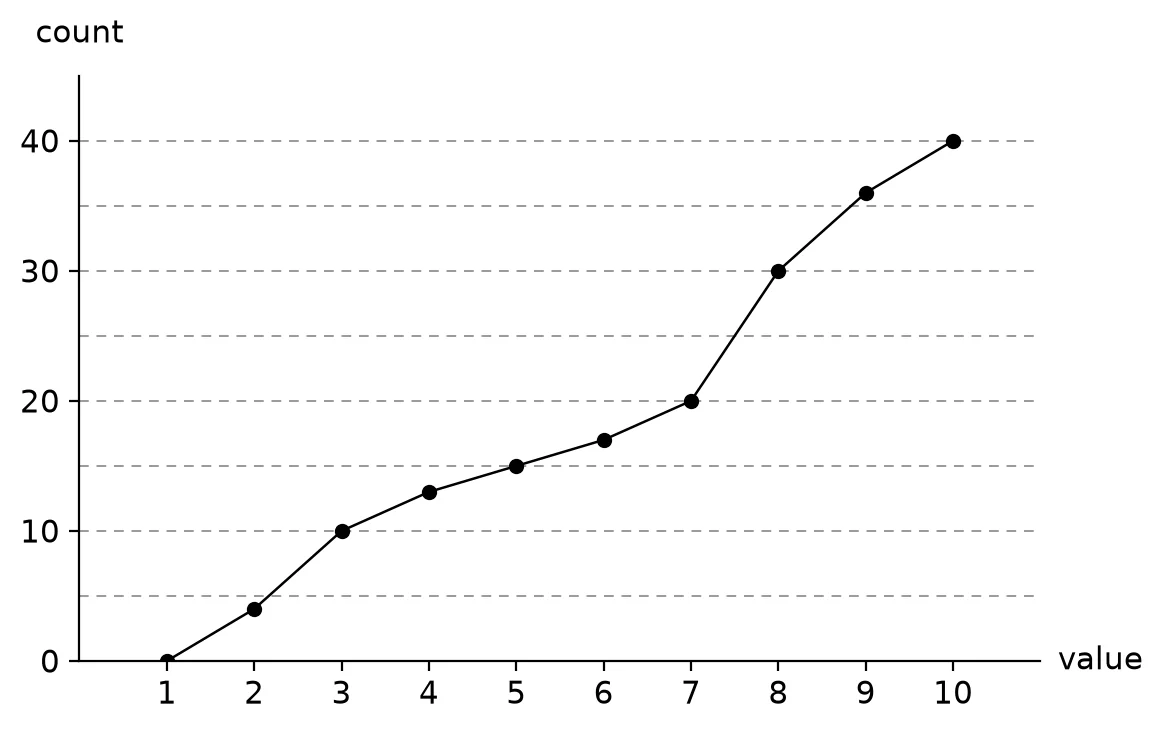

$Diagram for this question$
WE9 Use the following ogive to compute the five number summary of the data. Remember that the five number summary consists of the minimum, all the quartiles (including the median) and the maximum.(5)
Show the memo (5 ticks)Memo
1. ✓
  MinimumThe minimum value is $1$ , since this is where the ogive starts on the horizontal axis.
  1 mark · Read values from an ogive
2. ✓
  MaximumThe maximum value is $10$ , since this is where the ogive stops on the horizontal axis.
  1 mark · Read values from an ogive
3. ✓
  First quartileThe counts go up to $40$ , so $Q_{1}$ is at a count of $10$ : $Q_{1} = 3$
  1 mark · Read values from an ogive
4. ✓
  MedianA count of $20$ corresponds to a value of $7$ : median $= 7$
  1 mark · Read values from an ogive
5. ✓
  Third quartile and summaryA count of $30$ corresponds to a value of $8$ : $Q_{3} = 8$
  The five number summary is $(1; 3; 7; 8; 10)$ .
  1 mark · Read values from an ogive
