Grade 11 Maths · Statistics

Draw an ogive

Draw an ogive by plotting each cumulative frequency at the upper end of its class and joining the points with a smooth curve.

past paper questions use it
3 past paper questions use it
videos
3 videos

Learn it: draw an ogive

Pick one and watch it, then try the questions below. Videos load only when you tap play.

Statistics Grade 11: Ogive curveKevinmathscience
Statistics Grade 11 | Complete Cumulative Frequency & Draw OgiveGridwell Maths Tutoring
How To Construct Make Draw An Ogive Cumulative Frequency Graph From A Frequency Distribution TableWhats Up Dude

Now try it on a real exam question

No sign-up. Takes 3 minutes.

Question 2.3 · November 2024 · Paper 2 · Provincial · 4 marks

The traffic department has also conducted further investigation into where the best locations would be on the N12 to install speed cameras. Part of the investigation involved a survey of the different speeds of vehicles on the N12 between Potchefstroom and Klerksdorp.

The following table shows the results of the investigation:Diagram for this question
2.3 Illustrate the information in the table by drawing a ogive (cumulative frequency curve).(4)

Work it out on paper first. Then mark yourself with the official memo, one tick at a time.

More past paper questions: draw an ogive

Work each one out first, then open the memo and check every tick.

  1. 3. Question b · Siyavula Grade 11 Mathematics, 11.3 Ogives, Worked example 8 · 3 marks

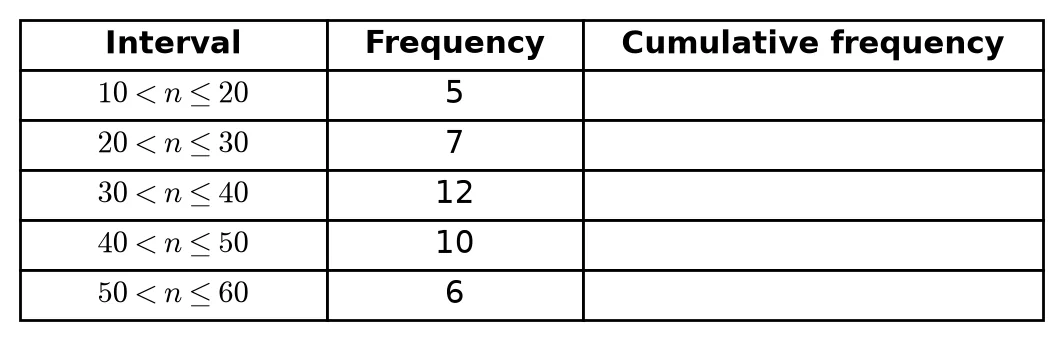

    The grouped data below is given in a table.Diagram for this question
    b Use the table to draw an ogive of the data.(3)
    Show the memo (3 ticks)
    1. ✓
      Grounded at the startThe first point is : at the beginning of the first interval, with a count of .

      1 mark · Draw an ogive

    2. ✓
      Points at the upper limitsPlot each cumulative frequency at the end of its interval: , , , , .

      1 mark · Draw an ogive

    3. ✓

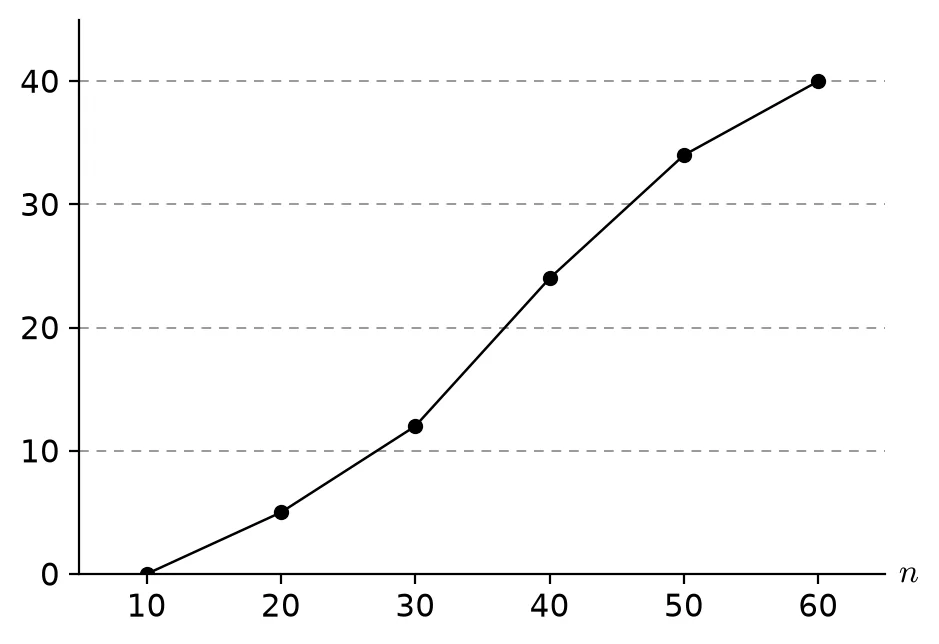

      Points joinedConnect the points to give the ogive.Memo diagram

      1 mark · Draw an ogive
