Grade 11 Physical Sciences · Mechanics

Find resultant of perpendicular vectors

Find the size and direction of the resultant of two vectors at right angles using Pythagoras and trig (3 N and 4 N give 5 N).

past paper questions use it: 7 past paper questions use it
videos: 3 videos

Learn it: find resultant of perpendicular vectors

Pick one and watch it, then try the questions below. Videos load only when you tap play.

Grade 11 Resultant vector and Vector DirectionsMiss Martins Maths and Science

1) Head to tail grade 11 | Part 1Kevinmathscience

Grade 11 vector in two dimensions physics LEVEL EASYMiss Martins Maths and Science

Now try it on a real exam question

No sign-up. Takes 3 minutes.

Question WE10 · Siyavula Grade 11 Physical Sciences, 1.2 Resultant of perpendicular vectors, Worked examples 10 and 11 · 4 marks

WE10 A force of

40

N in the positive

x

-direction acts simultaneously (at the same time) to a force of

30

N in the positive

y

-direction. Calculate the magnitude and the direction of the resultant force.(4)

Work it out on paper first. Then mark yourself with the official memo, one tick at a time.

More past paper questions: find resultant of perpendicular vectors

Work each one out first, then open the memo and check every tick.

3. Question 7.2.3 · May/June 2025 · Paper 1 · National (DBE) · 5 marks
7.2 Sphere S is attached to the ceiling at point P by a light inextensible string. When sphere R, on an insulated stand, is brought close to sphere S they repel and sphere S comes to rest with the horizontal distance between the centres of the spheres equal to $0, 03$ m.

Sphere R is directly below point P. The string makes an angle θ with the vertical, as shown in the diagram below.

Answer the questions that follow.
Sphere R has a charge of $+ 6$ nC. Sphere S has a charge $+ 3$ nC and a mass of $0, 15$ g.
7.2.3 Calculate angle θ.(5)
Show the memo (5 ticks)Memo
1. ✓
  Formula $F = \frac{k Q _{1} Q _{2}}{r ^{2}}$
  1 mark · Apply Coulomb's law
2. ✓
  Substitution $F = \frac{( 9 \times 1 0 ^{9} ) ( 6 \times 1 0 ^{- 9} ) ( 3 \times 1 0 ^{- 9} )}{( 0 , 03 ) ^{2}}$
  $= 1, 8 \times 1 0^{- 4}$ N
  1 mark · Apply Coulomb's law
3. ✓
  Weight of S $w = m g = (1, 5 \times 1 0^{- 4}) (9, 8) = 1, 47 \times 1 0^{- 3}$ N
  1 mark · Calculate weight
4. ✓
  Trig ratio $tan θ = \frac{F _{E}}{m g} = \frac{1 , 8 \times 1 0 ^{- 4}}{1 , 47 \times 1 0 ^{- 3}}$
  1 mark · Find resultant of perpendicular vectors
5. ✓
  Answer $θ = 6, 98°$
  1 mark · Find resultant of perpendicular vectors
4. Question 7.2.2 · May/June 2024 · Paper 1 · National (DBE) · 6 marks

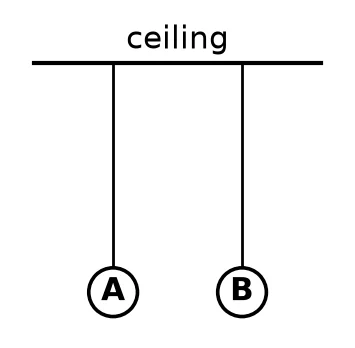

7.2 Two identical neutral polystyrene balls A and B are suspended from a ceiling by insulated, light inextensible strings of equal length, as shown in the diagram below.

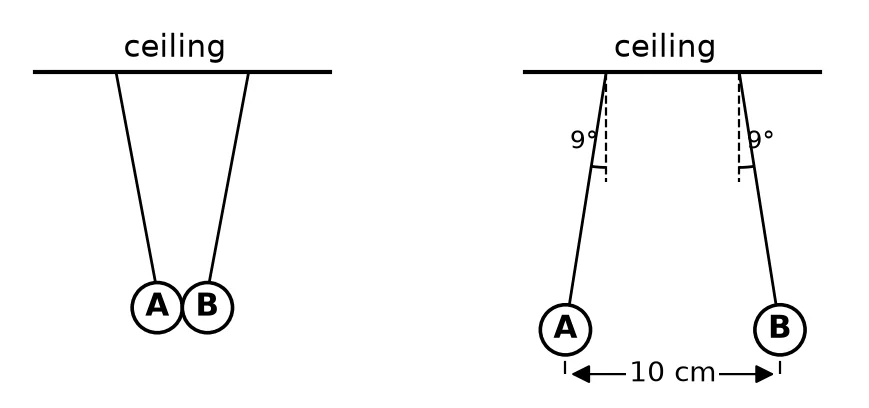

Ball B is then given an initial negative charge, $Q_{B}$ , of unknown magnitude. The balls attract each other, touch and then repel each other. The balls come to rest with their centres $10$ cm apart so that each string makes an angle of $9°$ with the vertical. See the diagrams below.

Answer the questions that follow.
7.2.2 Calculate the magnitude of the initial charge $Q_{B}$ given to ball B if the mass of each ball was $0, 012$ kg.(6)
Show the memo (6 ticks)Memo
1. ✓
  Correct trig expression equated to $F_{E}$ $F_{E} = w tan θ$

  Any one: $F_{E} = m g tan θ$ or $F_{E} = \frac{w}{t a n ( 90° - θ )}$
  1 mark · Find resultant of perpendicular vectors
2. ✓
  Substitution of mg with angle $9°$ $F_{E} = (0, 012) (9, 8) (tan 9°)$
  $= 0, 0186$ N
  1 mark · Find resultant of perpendicular vectors
3. ✓
  Coulomb's formula $F_{E} = \frac{k Q _{A} Q _{B}}{r ^{2}}$
  1 mark · Apply Coulomb's law
4. ✓
  Substitution into Coulomb's formula $0, 0186 = \frac{( 9 \times 1 0 ^{9} ) ( Q ^{2} )}{0 , 1 ^{2}}$
  $Q = 1, 44 \times 1 0^{- 7}$ C
  1 mark · Apply Coulomb's law
5. ✓
  Calculating 2Q $Q_{B} = 2 (1, 44 \times 1 0^{- 7})$
  1 mark · Calculate shared charge and electrons transferred
6. ✓
  Final answer $Q_{B} = 2, 88 \times 1 0^{- 7}$ C
  1 mark · Calculate shared charge and electrons transferred
5. Question WE8 · Siyavula Grade 11 Physical Sciences, 1.2 Resultant of perpendicular vectors, Worked example 8 · 4 marks
WE8 A number of tugboats are trying to manoeuvre a submarine in the harbour but they are not working as a team. Each tugboat is exerting a different force on the submarine. Given the following force vectors, determine the resultant force:
- $F_{1} = 3, 4$ kN in the positive $x$ -direction
- $F_{2} = 4000$ N in the positive $y$ -direction
- $F_{3} = 300$ N in the negative $y$ -direction
- $F_{4} = 7$ kN in the negative $y$ -direction(4)
Show the memo (4 ticks)Memo
1. ✓
  Consistent units $F_{2} = 4000 \times 1 0^{- 3}$ kN $= 4$ kN
  $F_{3} = 300 \times 1 0^{- 3}$ kN $= 0, 3$ kN
  1 mark · Convert units
2. ✓
  Resultant in the y-directionPositive $y$ up: $R_{y} = 4 - 0, 3 - 7 = - 3, 3$ kN
  $R_{y} = 3, 3$ kN in the negative $y$ -direction; $R_{x} = F_{1} = 3, 4$ kN in the positive $x$ -direction
  1 mark · Find a resultant in one dimension
3. ✓
  Magnitude of the resultantDraw $R_{x}$ and $R_{y}$ head-to-tail (scale $1$ kN : $1$ cm) and measure the resultant.
  $R = 4, 7$ kN
  1 mark · Find resultant of perpendicular vectors
4. ✓
  DirectionThe angle with the $x$ -axis is $44°$ ( $tan^{- 1} \frac{3 , 3}{3 , 4} = 44°$ ).
  $R$ is $4, 7$ kN at $- 44°$ from the positive $x$ -direction.
  1 mark · Find resultant of perpendicular vectors
6. Question 2.2.1 · November 2025 · Paper 1 · Provincial · 9 marks
Three forces, $F_{1}$ , $F_{2}$ and $F_{3}$ , NOT DRAWN TO SCALE, are applied to a crate of $25$ kg as shown in the diagram below.
2.2 Calculate the:
2.2.1 Magnitude and direction of the resultant of the three forces(9)
Show the memo (9 ticks)Memo
1. ✓
  x-component of F1 $F_{1 x} = 700 cos 60°$ (or $700 sin 30°$ ) $= 350$ N right
  1 mark · Resolve a vector into components
2. ✓
  x-component of F2 $F_{2 x} = 800 cos 40°$ (or $800 sin 50°$ ) $= 612, 84$ N right
  1 mark · Resolve a vector into components
3. ✓
  Net x-component $F_{3 x} = 650$ N left
  $F_{x} = 350 + 612, 84 - 650 = 312, 84$ N right
  1 mark · Find a resultant in one dimension
4. ✓
  y-component of F1 $F_{1 y} = 700 sin 60°$ (or $700 cos 30°$ ) $= 606, 22$ N upward
  1 mark · Resolve a vector into components
5. ✓
  y-component of F2 $F_{2 y} = 800 sin 40°$ (or $800 cos 50°$ ) $= 514, 23$ N downward
  1 mark · Resolve a vector into components
6. ✓
  Net y-component $F_{3 y} = 0$ N
  $F_{y} = 606, 22 - 514, 23 = 91, 99$ N upward
  1 mark · Find a resultant in one dimension
7. ✓
  Magnitude of the resultant $F_{n e t}^{2} = F_{y}^{2} + F_{x}^{2}$
  $F_{n e t}^{2} = (312, 84)^{2} + (91, 99)^{2}$
  $F_{n e t} = 326, 08$ N
  1 mark · Find resultant of perpendicular vectors
8. ✓
  Angle $tan θ = \frac{91 , 99}{312 , 84}$
  1 mark · Find resultant of perpendicular vectors
9. ✓
  Direction of the resultant $θ = 16, 39°$ above the positive x-axis
  Direction (memo): $73, 7°$
  1 mark · Find resultant of perpendicular vectors
