Grade 10 Physical Sciences · Waves, Sound and Light

Calculate photon energy

Calculate the energy of one photon of light using E = hf or E = hc/λ.

past paper questions use it: 6 past paper questions use it
videos: 3 videos

Learn it: calculate photon energy

Pick one and watch it, then try the questions below. Videos load only when you tap play.

Electromagnetic radiation calculations Grade 10 PhysicsMiss Martins Maths and Science

Grade 10 Physics Particle Nature of Electromagnetic RadiationMiss Martins Maths and Science

How To Calculate The Energy of a Photon Given Frequency & Wavelength in nm ChemistryThe Organic Chemistry Tutor

Now try it on a real exam question

No sign-up. Takes 3 minutes.

Question WE3 · Siyavula Grade 10 Physical Sciences, 11.5 Particle-like nature of EM radiation, Worked example 3 · 3 marks

WE3 Calculate the energy of a photon with a frequency of

3 \times 1 0^{18}

Hz.(3)

Work it out on paper first. Then mark yourself with the official memo, one tick at a time.

More past paper questions: calculate photon energy

Work each one out first, then open the memo and check every tick.

3. Question 10.1.2 · November 2023 · Paper 1 · National (DBE) · 4 marks

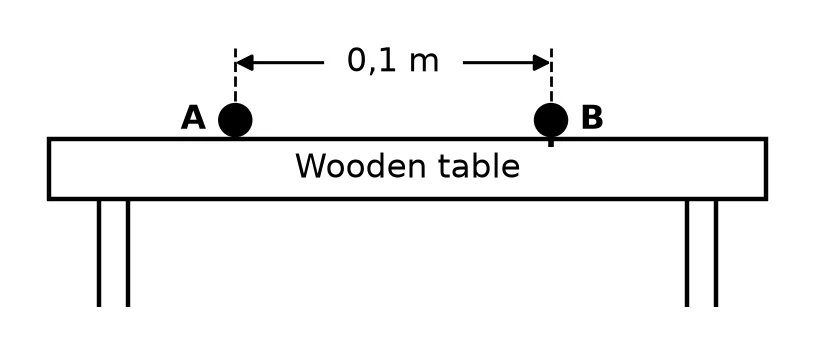

10.1 Two small spheres, $A$ and $B$ , made of pure zinc are at rest $0, 1$ m apart on a wooden table. Sphere $A$ is negatively charged and is free to move on the table, while sphere $B$ is uncharged and fixed to the table, as shown in the diagram below.

High-intensity ultraviolet light of frequency $2, 8 \times 1 0^{16}$ Hz is now shone continuously onto sphere $B$ .

The work function of zinc is $6, 63 \times 1 0^{- 19}$ J.

Answer the questions that follow.
10.1.2 Explain, using a suitable calculation, why the ultraviolet light shone on sphere $B$ will eject electrons from its surface.(4)
Show the memo (4 ticks)Memo
1. ✓
  Formula $E = h f$
  1 mark · Calculate photon energy
2. ✓
  Substitution $E = (6, 63 \times 1 0^{- 34}) (2, 8 \times 1 0^{16})$
  1 mark · Calculate photon energy
3. ✓
  Answer $E = 1, 86 \times 1 0^{- 17}$ (J)
  1 mark · Calculate photon energy
4. ✓
  ComparisonSince $E > W_{0}$ (or $E - W_{0} > 0$ ), electrons will be ejected.
  1 mark · Explain the photoelectric effect
4. Question 10.1.2 · May/June 2022 · Paper 1 · National (DBE) · 4 marks

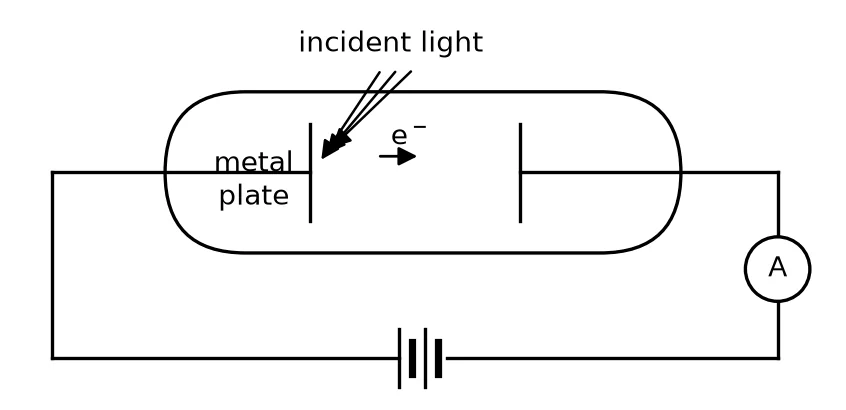

10.1 The apparatus illustrated in the simplified diagram below is used to demonstrate the photoelectric effect.
Incident light of frequency $1, 2 \times 1 0^{15}$ Hz is shone onto the metal plate and electrons are emitted.

Calculate the:
10.1.2 Number of photoelectrons emitted in one second if the total energy transferred by the light to the metal plate per second is $1, 75 \times 1 0^{- 9}$ J(4)
Show the memo (4 ticks)Memo
1. ✓
  FormulaFor one photon:
  $E = h f$
  1 mark · Calculate photon energy
2. ✓
  Substitution $E = (6, 63 \times 1 0^{- 34}) (1, 2 \times 1 0^{15}) = 7, 96 \times 1 0^{- 19}$ J
  1 mark · Calculate photon energy
3. ✓
  Number of photonsNo of $e^{-}$ = No of photons $= \frac{Total energy of photons}{Energy of one photon} = \frac{1 , 75 \times 1 0 ^{- 9}}{7 , 96 \times 1 0 ^{- 19}}$
  1 mark · Explain the photoelectric effect
4. ✓
  Answer $= 2, 2 \times 1 0^{9}$ ( $2, 198 \times 1 0^{9}$ )
  1 mark · Explain the photoelectric effect
5. Question 3.3.2 · November 2023 · Paper 1 · Provincial · 3 marks
The diagram below shows the wavelengths of frequencies of different types of electromagnetic radiation. Consider the diagram and answer the questions that follow.
3.3 A photon has a wavelength of $700$ nm.

Calculate the:
3.3.2 Frequency of the photon.(3)
Show the memo (3 ticks)Memo
1. ✓
  Formula $E = h f$
  1 mark · Calculate photon energy
2. ✓
  Substitution $2, 84 \times 1 0^{- 19} = 6, 63 \times 1 0^{- 34} f$
  1 mark · Calculate photon energy
3. ✓
  Answer with unit $f = 4, 29 \times 1 0^{14}$ Hz
  1 mark · Calculate photon energy
