Grade 10 Physical Sciences · Mechanics · Define vector and motion terms

Vectors and Scalars Grade 10

Give the exact meaning of motion words like displacement, velocity and acceleration, or sort a quantity as a vector or a scalar (speed is a scalar).

questions use it, all grades · 54 past paper, 30 practice
84 questions use it, all grades · 54 past paper, 30 practice
videos
4 videos

Learn it: define vector and motion terms

Pick one and watch it, then try the questions below. Videos load only when you tap play.

Vectors and Scalars PhysicsMiss Martins Maths and Science
Motion in one dimension: Frame of reference and position Grade 10 PhysicsMiss Martins Maths and Science
Displacement and Distance: Motion in One DimensionMiss Martins Maths and Science
Velocity and speed: Motion in One DimensionMiss Martins Maths and Science

Now try it on a real exam question

No sign-up. Takes 3 minutes.

Question 3.1 · May/June 2025 · Paper 1 · National (DBE) · 2 marks

A ball is dropped from point A and reaches point B h metres below point A, in time t. The ball takes s to fall from point B to point C on the ground. The distance from point B to point C is 8h metres. See the diagram below.

Ignore the effects of air friction.Diagram for this question
3.1 Define the term free fall.(2)

Work it out on paper first. Then mark yourself with the official memo, one tick at a time.

More past paper questions: define vector and motion terms

Work each one out first, then open the memo and check every tick.

  1. 3. Question 3.1 · May/June 2024 · Paper 1 · National (DBE) · 2 marks

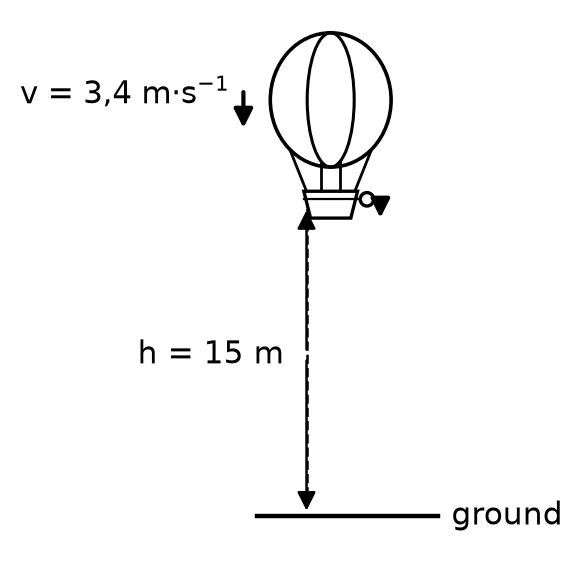

    A hot-air balloon moves vertically downwards at a constant velocity of m·s. When the balloon is m above the ground, a small ball is dropped from the balloon. Refer to the diagram below.

    The ball strikes the ground and bounces vertically upwards. The hot-air balloon continues to move downwards at the same constant velocity.

    Ignore the effects of air friction acting on the ball.Diagram for this question
    3.1 Define the term free fall.(2)
    Show the memo (2 ticks)
    1. ✓
      Definition of free fallMotion during which the only force acting is gravitational force.

      OR

      Motion under the influence of gravitational force only.

      2 marks · Define vector and motion terms

  2. 4. Question 3.1 · November 2023 · Paper 1 · National (DBE) · 2 marks

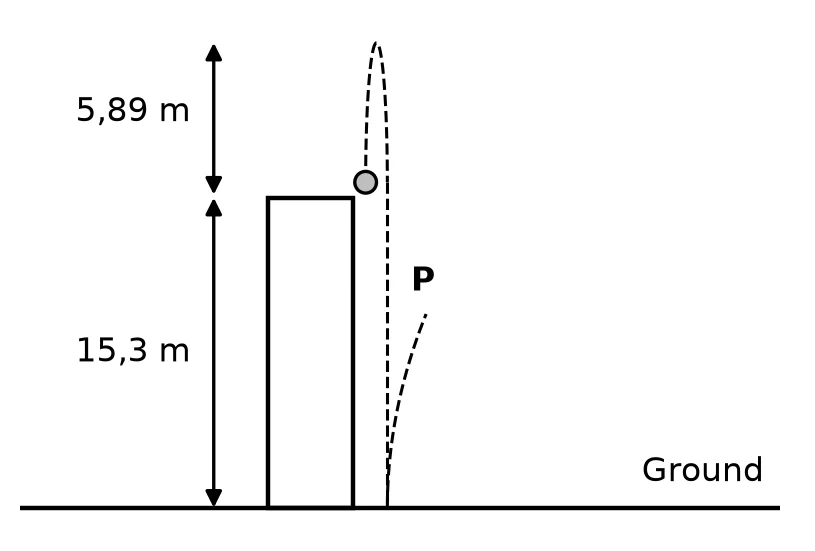

    A ball of mass kg is thrown vertically upwards from the top edge of a building which is m high. The ball reaches a maximum height of m above the top of the building. The ball strikes the ground and bounces vertically upwards, reaching a maximum height at point , as shown in the diagram below.

    Ignore the effects of air friction.Diagram for this question
    3.1 Define the term free fall.(2)
    Show the memo (2 ticks)
    1. ✓
      Definition of free fallMotion under the influence of gravitational force only.

      OR

      Motion in which the only force acting is gravitational force.

      2 marks · Define vector and motion terms

  3. 5. Question 3.1 · May/June 2023 · Paper 1 · National (DBE) · 2 marks

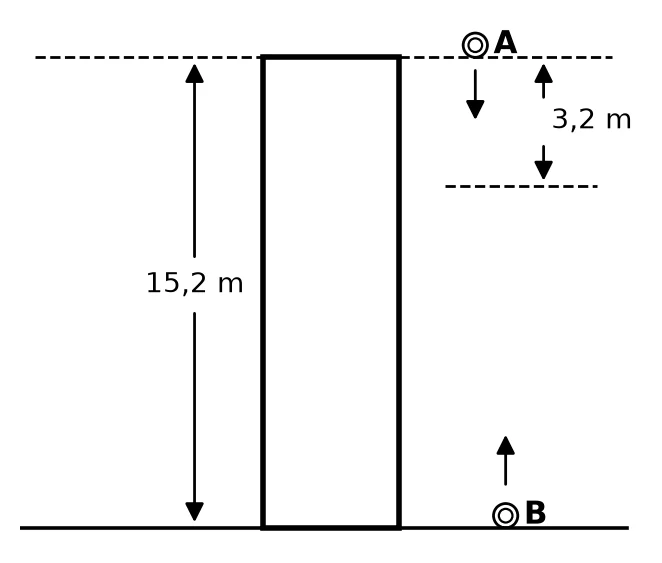

    Ball A is dropped from rest from the top of a building m high.

    After ball A has fallen m, a second ball B is projected vertically upwards from the ground. After a while, the two balls strike the ground at the SAME time.

    Ignore the effects of air resistance.Diagram for this question
    3.1 Define the term free fall.(2)
    Show the memo (2 ticks)
    1. ✓
      Definition of free fallMotion under the influence of gravity/weight/gravitational force only.

      OR

      Motion in which the only force acting is the gravitational force.

      2 marks · Define vector and motion terms

  4. 6. Question 3.1 · November 2022 · Paper 1 · National (DBE) · 2 marks

    A ball is thrown vertically upwards from the top of a building of height m with a velocity of m·s. On its way down, the ball passes a door which has a height of m and then strikes the ground, as shown in the diagram below.

    Ignore the effects of air friction.Diagram for this question
    3.1 Define the term free fall.(2)
    Show the memo (2 ticks)
    1. ✓
      Definition of free fallMotion under the influence of gravity/weight/gravitational force only.

      OR

      Motion in which the only force acting is gravity/weight/gravitational force.

      2 marks · Define vector and motion terms
