Grade 11 Physical Sciences · Electricity and Magnetism

Draw electric field patterns

Draw electric field lines around one or two charges, with arrows pointing away from positive and towards negative charges.

past paper questions use it: 8 past paper questions use it
videos: 2 videos

Learn it: draw electric field patterns

Pick one and watch it, then try the questions below. Videos load only when you tap play.

10.06 How to draw electric field patternsMr Naga Physics

How To Draw Electric Field Lines of Point Charges - College PhysicsThe Organic Chemistry Tutor

Now try it on a real exam question

No sign-up. Takes 3 minutes.

Question 7.2 · November 2025 · Paper 1 · National (DBE) · 2 marks

A sphere X is placed at point A on a horizontal surface. X carries a charge of

+ 3 \times 1 0^{- 7}

C. Point P is r metres to the left of point A, as shown in the diagram below.

The magnitude of the electric field at point P is

1, 08 \times 1 0^{6}

N·C

^{- 1}

7.2 Draw the electric field pattern due to the charge on sphere X.(2)

Work it out on paper first. Then mark yourself with the official memo, one tick at a time.

More past paper questions: draw electric field patterns

Work each one out first, then open the memo and check every tick.

3. Question 7.1.1 · May/June 2024 · Paper 1 · National (DBE) · 2 marks

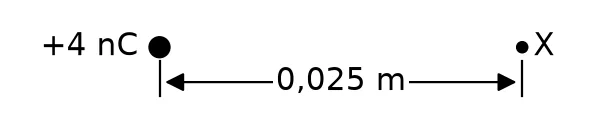

7.1 X is a point $0, 025$ m away from a $+ 4$ nC point charge. See the diagram below.

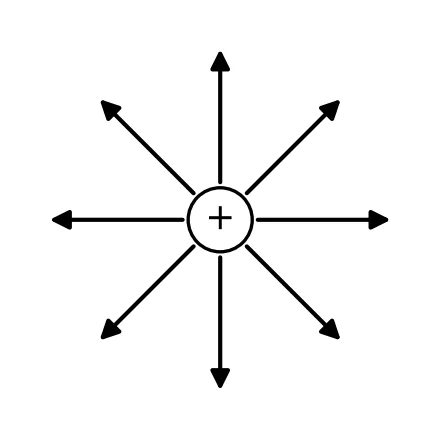

7.1.1 Draw the electric field pattern due to the $+ 4$ nC charge.(2)
Show the memo (2 ticks)Memo
1. ✓
  Correct shapeStraight field lines radiating out from the charge in all directions (radial pattern), evenly spaced, not crossing or touching.
  1 mark · Draw electric field patterns
2. ✓
  Correct directionArrows point away from the charge.
  1 mark · Draw electric field patterns
4. Question 7.2 · November 2024 · Paper 1 · National (DBE) · 3 marks
P is a $+ 2$ nC point charge. X is a point $6$ cm away from charge P, as shown in the diagram below.

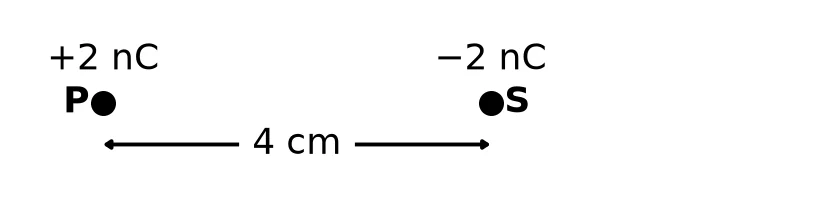

Point charge S, with a charge of $- 2$ nC, is placed $4$ cm to the right of charge P, as shown in the diagram below.

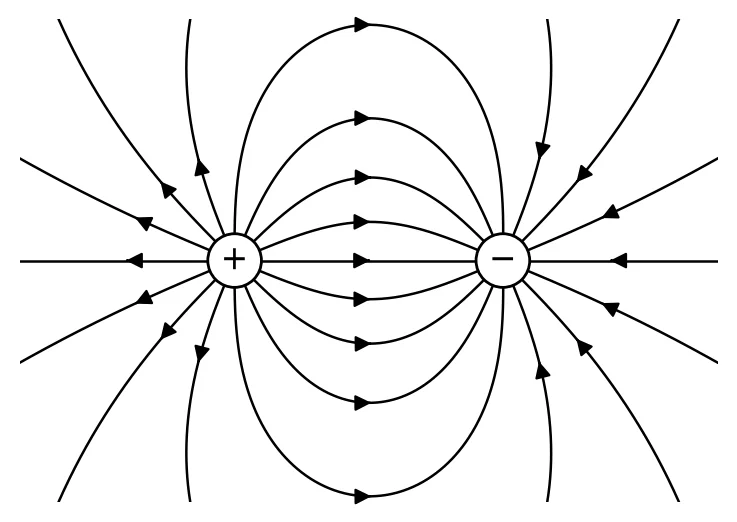

7.2 Draw the resultant electric field pattern due to charges P and S.(3)
Show the memo (3 ticks)Memo
1. ✓
  DirectionArrows point away from P (positive) and towards S (negative).
  1 mark · Draw electric field patterns
2. ✓
  ShapeCorrect shape of the electric field lines between the charges (curving from P to S) and on the outside of the charges.
  1 mark · Draw electric field patterns
3. ✓
  Lines touch the charges, no crossingNo field lines crossing each other. Field lines must touch the charge, but not go inside the charge.
  1 mark · Draw electric field patterns
5. Question 7.2 · November 2023 · Paper 1 · National (DBE) · 3 marks
Two point charges, $A$ and $B$ , each with a charge of $+ 3 \times 1 0^{- 9}$ C, are stationary on a horizontal surface. Point $P$ is r metres from charge $A$ and 2r metres from charge $B$ , as shown in the diagram below.

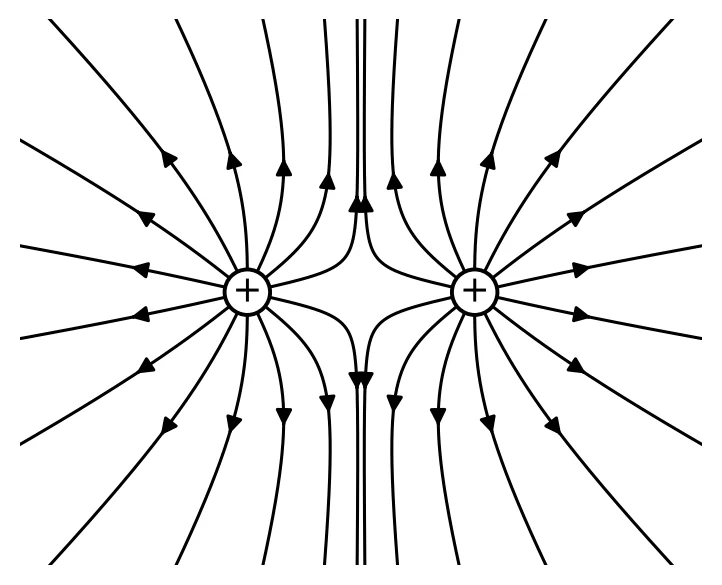

7.2 Draw the resultant electric field pattern due to charges $A$ and $B$ .(3)
Show the memo (3 ticks)Memo
1. ✓
  Direction of field linesArrows point away from both charges (both are positive).
  1 mark · Draw electric field patterns
2. ✓
  Shape between and outside the chargesLines bend away from each other between the charges (no line joins A to B), leaving a field-free point between them; outside, lines spread out radially.
  1 mark · Draw electric field patterns
3. ✓
  Lines do not cross and touch the chargesNo field lines cross each other. Field lines touch the charges but do not go inside them.
  1 mark · Draw electric field patterns
6. Question 7.2 · May/June 2023 · Paper 1 · National (DBE) · 3 marks
Two point charges, X and Y, are held $0, 03$ m apart, as shown in the diagram below. The charge of X is $- 7, 2 \times 1 0^{- 9}$ C, while the charge of Y is $+ 7, 2 \times 1 0^{- 9}$ C.

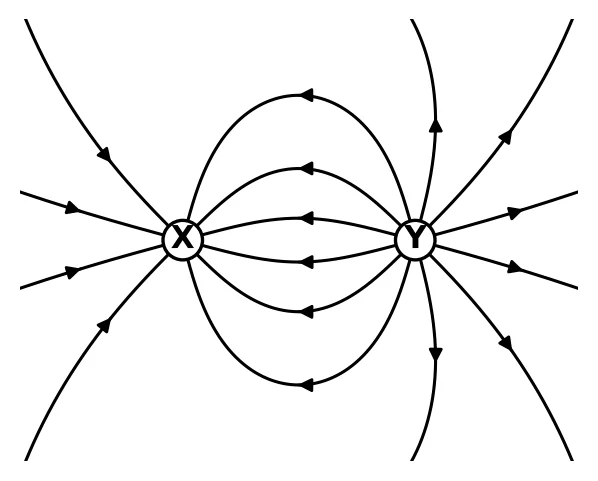

7.2 Draw the net electric field pattern due to the two point charges.(3)
Show the memo (3 ticks)Memo
1. ✓
  Correct shapeField lines run between X and Y, curving outwards between them, as for two opposite charges; some lines leave Y and some enter X from outside.
  1 mark · Draw electric field patterns
2. ✓
  Correct direction from Y to XArrows point away from Y (positive) and towards X (negative).
  1 mark · Draw electric field patterns
3. ✓
  Lines do not cross and touch the chargesNo two lines cross, and every line starts or ends on a charge.
  1 mark · Draw electric field patterns
