Grade 10 Physical Sciences · Mechanics · Paper 1 (Physics)

Motion in One Dimension Grade 10

Real Motion in One Dimension past paper questions and answers from 2017 to 2025, with each memo split into the ticks examiners give. Try one, mark yourself, and see exactly which skill cost you marks.

past paper questions: 156 past paper questions
skills: 11 skills
videos: 11 videos

Try a Motion in One Dimension exam question

No sign-up. Takes 3 minutes.

Question 5.5 · May/June 2023 · Paper 1 · National (DBE) · 4 marks

An electric motor pulls a

20

kg crate from rest at point A up an inclined plane by means of a light inextensible rope. The inclined plane makes an angle of

18°

with the horizontal. B, C and D are points on the inclined plane and the distance between points A and C is

15, 6

m, as shown in the diagram below.

The motor exerts a constant force of

96, 8

N parallel to the inclined plane on the rope.

A constant frictional force of

13, 5

N acts on the crate as it moves on the inclined plane. Diagram for this question

5.5 Draw a velocity-time graph for the entire motion of the crate starting from point A until it passes point B again on its motion down the inclined plane.(4)

Work it out on paper first. Then mark yourself with the official memo, one tick at a time.

Motion in One Dimension skills

Each skill is one thing a memo gives a tick for. Tap one for its own questions, notes and videos.

More Motion in One Dimension Grade 10 questions and answers

Try each one on paper before you open the memo.

4. Question 5.3.2 · May/June 2025 · Paper 1 · National (DBE) · 3 marks
Water is drawn from a water source $12, 5$ m below the ground by an electric pump. The water is lifted vertically upwards at a constant speed, as shown in the simplified diagram below.

The pump lifts the water upwards at a rate of $2, 5$ kg·s $^{- 1}$ . Ignore ALL frictional and capillarity effects.
5.3 The pump lifts $200$ kg of water from the source to the ground at a constant speed. Calculate the:
5.3.2 Constant speed at which the water is lifted(3)
Show the memo (3 ticks)Memo
1. ✓
  Time to lift the water $Δ t = \frac{200}{2 , 5} = 80$ s
  1 mark · Calculate distance, speed and velocity
2. ✓
  Substitution $v = \frac{Δ x}{Δ t} = \frac{12 , 5}{80}$
  1 mark · Calculate distance, speed and velocity
3. ✓
  Answer $v = 0, 16$ m·s $^{- 1}$ ( $0, 156$ m·s $^{- 1}$ )
  1 mark · Calculate distance, speed and velocity
5. Question 6.2.4 · November 2019 · Paper 2 · National (DBE) · 2 marks
6.2 Consider the incomplete equation for the chemical reaction below.

$Zn(s) + H_{2} SO_{4} (aq) \to X + H_{2} (g)$

Answer the questions that follow.
6.2.4 Briefly describe a test that can be used to verify the formation of hydrogen gas during the reaction above.(2)
Show the memo (1 tick)Memo
1. ✓
  Pop testWhen a burning woodsplinter is brought close to the gas it makes a popping sound.
  2 marks · Describe and evaluate an experiment
6. Question 1.2 · November 2018 · Paper 1 · National (DBE) · 2 marks
1.2 A car is travelling at a speed of $30$ m·s $^{- 1}$ on a straight road. What would be the speed of the car in km·h $^{- 1}$ ?(2)
1. A $8, 33$ km·h $^{- 1}$
2. B $30$ km·h $^{- 1}$
3. C $108$ km·h $^{- 1}$
4. D $130$ km·h $^{- 1}$
Show the memo (1 tick)Memo
1. ✓
  Correct optionTo change m·s $^{- 1}$ to km·h $^{- 1}$ , multiply by $3, 6$ (there are $3600$ s in an hour and $1000$ m in a km):
  $30 \times 3, 6 = 108$ km·h $^{- 1}$ .
  Option A divides by $3, 6$ instead of multiplying.

  Answer: C
  2 marks · Convert units
7. Question 2.1 · November 2018 · Paper 1 · National (DBE) · 2 marks
A baby leaves a bowl of food on the floor and crawls westwards to fetch a toy placed $5$ m away. At the same time a dog walks eastwards towards the baby. It takes the baby $30$ s to reach the toy. The dog walks past the toy to eat the baby's food in the bowl.
2.1 Define the term displacement in words.(2)
Show the memo (1 tick)Memo
1. ✓
  Definition of displacementThe change in position (of an object).

  OR: The difference in position (in space).
  2 marks · Define vector and motion terms
8. Question 3.7 · November 2018 · Paper 2 · National (DBE) · 2 marks

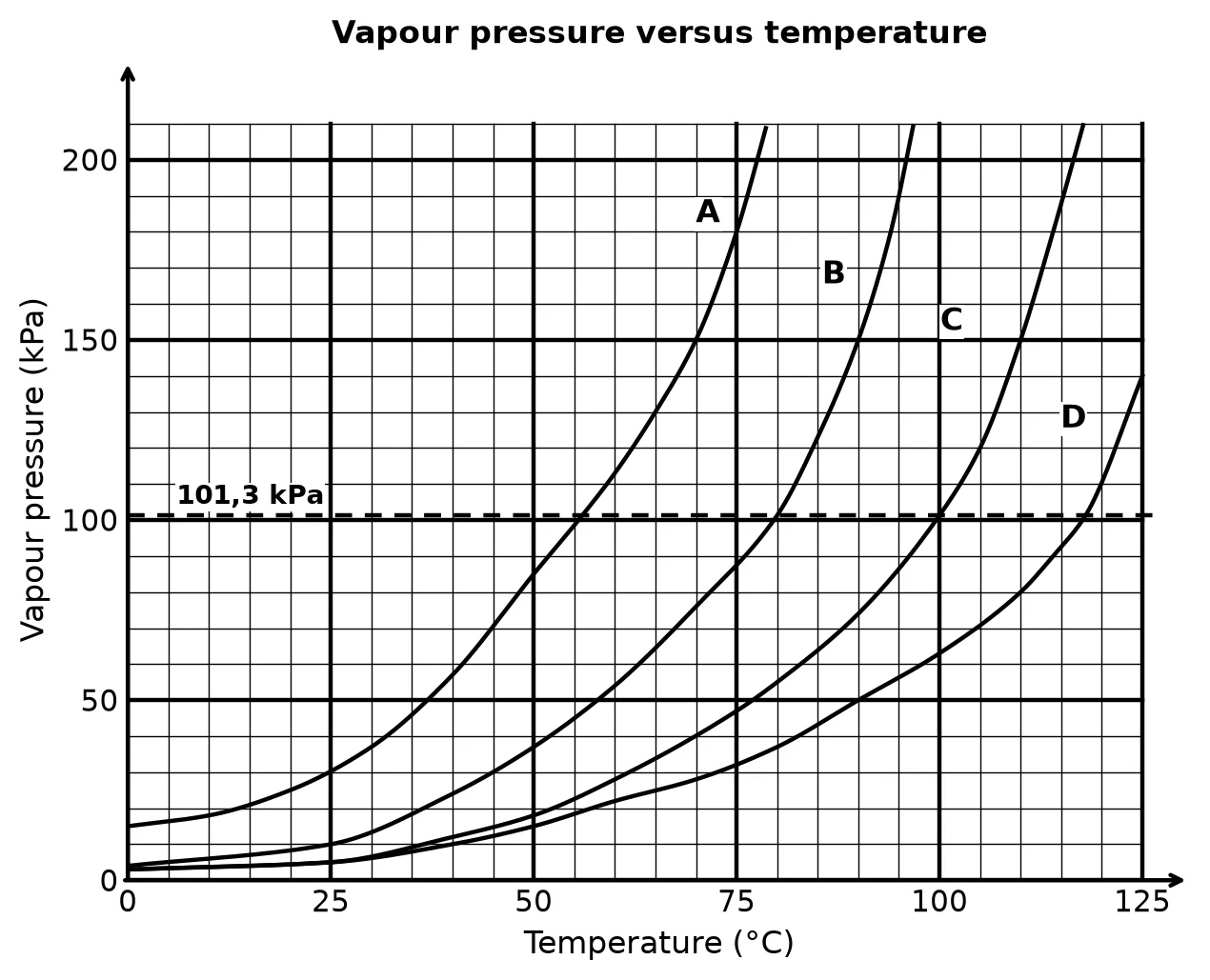

The vapour pressure versus temperature graph below was obtained for four unknown liquids (A, B, C and D). Atmospheric pressure is measured as $101, 3$ kPa.
3.7 What is the relationship between vapour pressure of the liquid and temperature?(2)
Show the memo (1 tick)Memo
1. ✓
  Relationship in wordsVapour pressure increases with an increase in temperature.

  OR

  Vapour pressure is proportional to temperature.
  2 marks · Write investigative question or conclusion
9. Question 8.2.1 · November 2018 · Paper 2 · National (DBE) · 2 marks

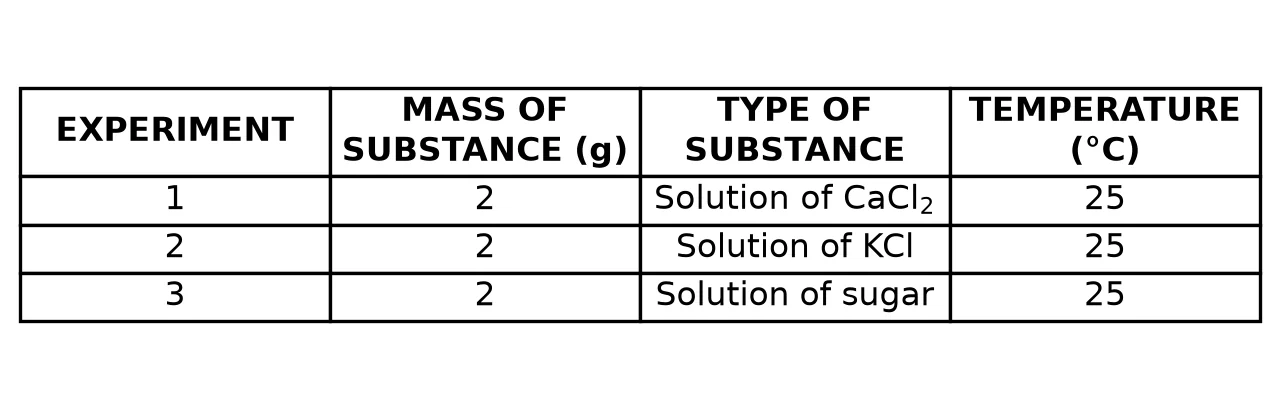

Learners investigate how the type of substance affects electrical conductivity of the substance. They conduct three experiments using three different substances under the same conditions, as shown in the table below.
8.2 For the investigation, write down the:
8.2.1 Investigative question(2)
Show the memo (2 ticks)Memo
1. ✓
  Dependent and independent variables statedWhat is the relationship between a type of substance and its (electrical) conductivity?

  OR

  How does a type of substance affect the (electrical) conductivity of a substance?
  1 mark · Write investigative question or conclusion
2. ✓
  Question about the relationshipPhrased as a question about the relationship between the variables (ending in a question mark).
  1 mark · Write investigative question or conclusion
10. Question 1.1 · November 2017 · Paper 1 · National (DBE) · 2 marks
Various options are provided as possible answers to the following questions. Each question has only ONE correct answer. Choose the answer and write only the letter (A–D) next to the question number.
1.1 Which ONE of the following pairs of physical quantities consists of one scalar and one vector quantity?(2)
1. A Distance and speed
2. B Speed and acceleration
3. C Displacement and velocity
4. D Velocity and acceleration
Show the memo (1 tick)Memo
1. ✓
  Correct optionSpeed is a scalar (magnitude only) and acceleration is a vector (magnitude and direction). A has two scalars; C and D have two vectors each.

  Answer: B
  2 marks · Define vector and motion terms
