Grade 10 Maths · Functions

Shift or reflect a graph

Describe in words how a graph has moved, flipped or stretched to make a new graph, or write the new graph's equation.

past paper questions use it: 7 past paper questions use it
videos: 3 videos

Learn it: shift or reflect a graph

Pick one and watch it, then try the questions below. Videos load only when you tap play.

Grade 12 Functions Student Question Find equation of p(x) if f(x) is shifted 2 units left | NTENTE \ New Technological Education

Functions Grade 11 & 12 | Part 5: Reflections & TranslationsMaths With Mudinda

Transforming Algebraic Functions: Shifting, Stretching, and ReflectingProfessor Dave Explains

Now try it on a real exam question

No sign-up. Takes 3 minutes.

Question 5.5 · November 2024 · Paper 1 · National (DBE) · 2 marks

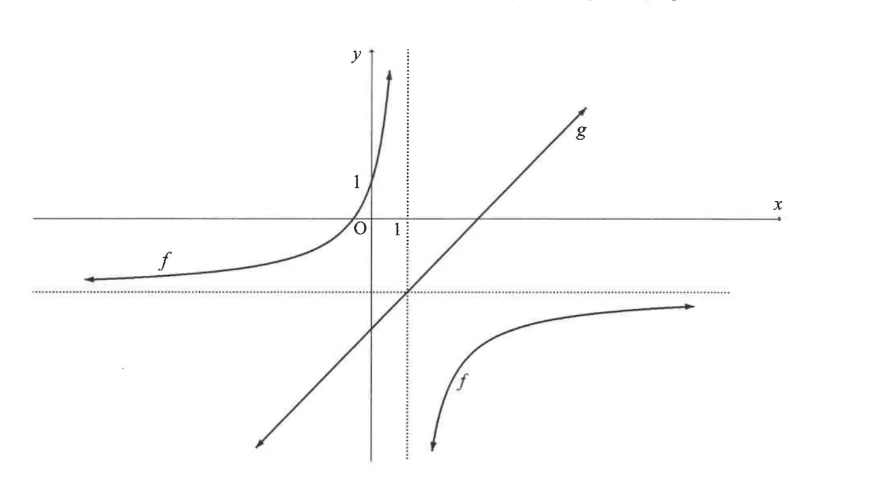

Sketched below is the graph of

f (x) = \frac{a}{x + p} + q

having the domain

(- \infty; 1) \cup (1; \infty)

. The graph of

f

cuts the y-axis at

(0; 1)

. A line of symmetry of

f

is given by

g (x) = x - 3

5.5 Graph

f

undergoes a transformation to

h

where: The domain and range of

h

are the same as that of

f

h^{'} (x)

, the derivative of

h

, is negative on its domain. Describe a possible transformation that

f

could have undergone to result in

h

.(2)

Work it out on paper first. Then mark yourself with the official memo, one tick at a time.

More past paper questions: shift or reflect a graph

Work each one out first, then open the memo and check every tick.

3. Question 8.5 · March 2024 · Paper 1 · Provincial · 2 marks

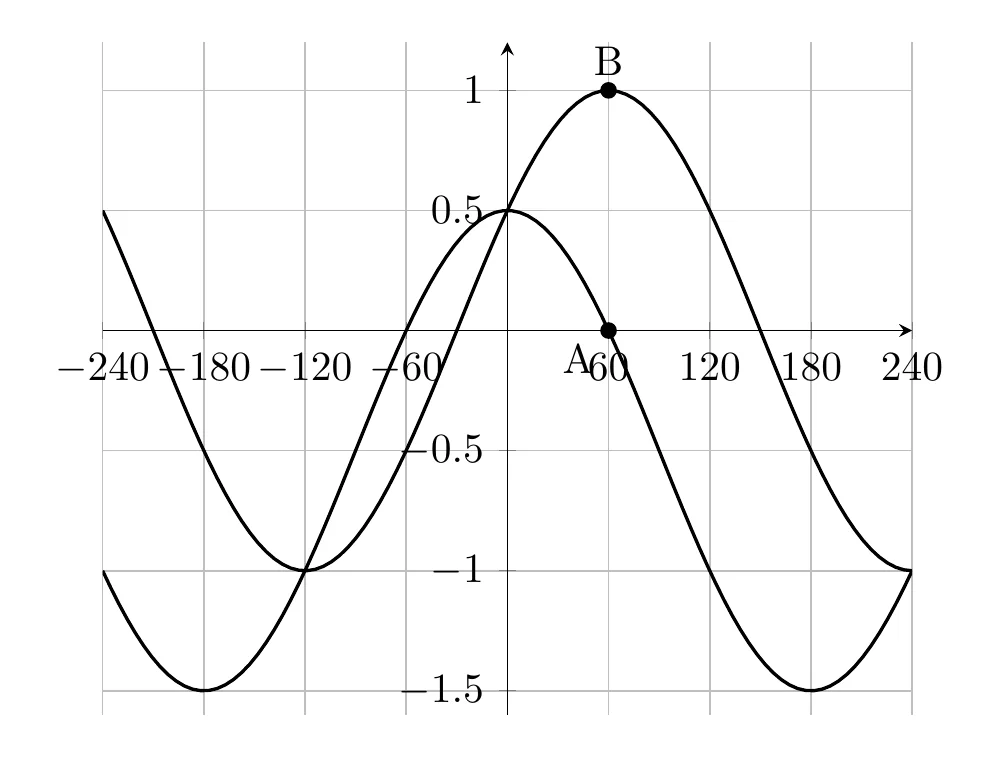

In the diagram below, the graphs of $f (x) = cos x + m$ and $g (x) = sin (x + n)$ are drawn on the same set of axes for $x \in [- 24 0^{\circ}; 24 0^{\circ}]$ . $A$ is an $x$ -intercept of $f$ and has coordinates $(6 0^{\circ}; 0)$ . $B$ is a turning point of $g$ and has coordinates $(6 0^{\circ}; 1)$ .
8.5 Describe the transformations that the graph of $g$ has to undergo to form the graph of $p$ , where $p (x) = - cos x$ .(2)
Show the memo (1 tick)Memo
1. ✓
  Identify shift and reflectionShift $6 0^{\circ}$ to the left.
  Reflection in the $x$ -axis.
  2 marks · Shift or reflect a graph
4. Question 6.4 · November 2024 · Paper 1 · National (DBE) · 5 marks
In the diagram below, the graphs of $f (x) = - x^{2} + 4 x + 5$ and $g$ , a straight line, are drawn. $C (3; 8)$ is a point of intersection of $f$ and $g$ . $E H$ is drawn parallel to the y-axis, with $E$ a point on $f$ and $H$ a point on $g$ .
6.4 Given: $k (x) = f (x + m) = - x^{2} - 2 m x - m^{2} + 4 x + 4 m + 5$ . Determine the value of $m$ such that $g$ is a tangent to $k$ .(5)
Show the memo (3 ticks)Memo
1. ✓
  METHOD 1: Using Derivative $k^{'} (x) = - 2 x - 2 m + 4$
  1 mark · Differentiate using the power rule
2. ✓
  Equate derivative to gradient of g $k^{'} (x) = 2$
  $- 2 x - 2 m + 4 = 2$
  $- 2 x = 2 m - 2$
  $x = 1 - m$
  1 mark · Find equation of a tangent
3. ✓
  Substitute and solve $k (1 - m) = g (1 - m)$
  $- (1 - m)^{2} - 2 m (1 - m) - m^{2} + 4 (1 - m) + 4 m + 5 = 2 (1 - m) + 2$
  Simplify: $- 2 m - 4 = 0$
  $m = - 2$
  3 marks · Find equation of a tangent
5. Question 5.4 · November 2025 · Paper 1 · Provincial · 3 marks

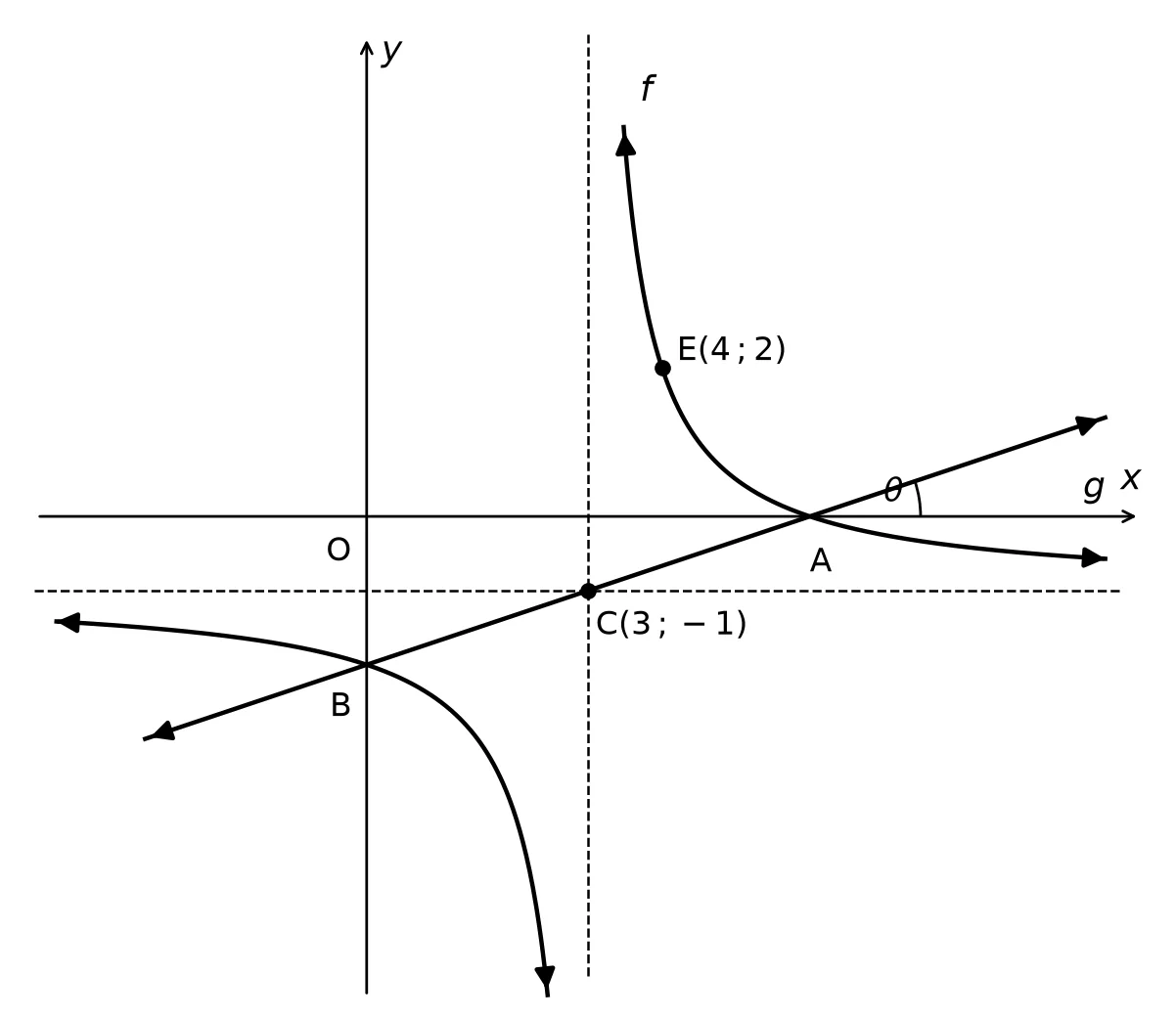

The graphs of $f (x) = \frac{a}{x + p} + q$ and $g (x) = \frac{x}{3} + c$ are drawn below. C $(3; - 1)$ is the point of intersection between the asymptotes of $f$ . A and B are $x$ - and $y$ -intercepts of $f$ and $g$ respectively. E $(4; 2)$ is a point on $f$ in the first quadrant. $Diagram for this question$
5.4 Write down the domain of $h$ , if $h (x) = f [- (x - 4)]$ (3)
Show the memo (3 ticks)Memo
1. ✓
  Replacing $x$ by $- (x - 4)$ Vertical asymptote of $f$ : $x - 3 = 0$ , so for $h$ :
  $- (x - 4) - 3 = 0$
  1 mark · Shift or reflect a graph
2. ✓
  $x - 1 = 0$ / $x = 1$ $- x + 4 - 3 = 0$
  $- x + 1 = 0$
  $x - 1 = 0$
  V.A.: $x = 1$
  1 mark · State the asymptotes
3. ✓
  AnswerDomain: $x \in R$ ; $x \neq = 1$
  1 mark · State the domain and range
6. Question 5.3 · March 2023 · Provincial · 3 marks
The graph of $f (x) = \frac{2}{x + p} + q$ is sketched.
5.3 If $h (x) = - 2 [g (x)]$ , determine the equation of the inverse of $h$ , $h^{- 1}$ , in the form $h^{- 1} (x) = m x + c$ .(3)
Show the memo (3 ticks)Memo
1. ✓
  Determine equation for h(x) $g (x) = - x - 4$
  $h (x) = - 2 (- x - 4) = 2 x + 8$
  1 mark · Shift or reflect a graph
2. ✓
  Swap x and y for inverse $x = 2 y + 8$
  1 mark · Find the equation of an inverse
3. ✓
  Solve for y $2 y = x - 8$
  $y = \frac{x}{2} - 4$
  $h^{- 1} (x) = \frac{1}{2} x - 4$
  1 mark · Find the equation of an inverse
