Find trig ratios from a sketch

Find trig ratios from a point or a sketch using x, y and r, for example the point (−3; 4) gives r = 5 and cos θ = −3/5.

past paper questions use it: 39 past paper questions use it
videos: 4 videos

Learn it: find trig ratios from a sketch

Pick one and watch it, then try the questions below. Videos load only when you tap play.

Trigonometry CAST diagram Grade 10 Maths Exam Questions PART 1Miss Martins Maths and Science

Grade 11 Trigonometry "In terms of" questions: Trigonometric values represented by lettersMiss Martins Maths and Science

Exam Cast Diagram Grade 10Kevinmathscience

Now try it on a real exam question

No sign-up. Takes 3 minutes.

Question 5.1.1 · May/June 2025 · Paper 2 · National (DBE) · 3 marks

5.1 If

cos θ = - \frac{5}{13}

where

18 0^{\circ} < θ < 36 0^{\circ}

, determine, without using a calculator, the value of:

5.1.1

sin^{2} θ

(3)

Work it out on paper first. Then mark yourself with the official memo, one tick at a time.

More past paper questions: find trig ratios from a sketch

Work each one out first, then open the memo and check every tick.

3. Question 3.1.2 · March 2024 · Paper 1 · Provincial · 3 marks
Do not use a calculator when answering Question 3.
In the diagram, $P (- 6; 8)$ is a point in the Cartesian plane. A is a point on the positive x-axis. $∠ A OP = θ$ .
3.1 Determine, with the aid of the diagram, the following:
3.1.2 $sin θ + cos θ$ (3)
Show the memo (2 ticks)Memo
1. ✓
  Determine ratios $sin θ = \frac{y}{r} = \frac{8}{10}$
  $cos θ = \frac{x}{r} = \frac{- 6}{10}$
  2 marks · Find trig ratios from a sketch
2. ✓
  Calculate sum $\frac{8}{10} - \frac{6}{10} = \frac{2}{10} = \frac{1}{5}$
  1 mark · Find trig ratios from a sketch
4. Question 3.2.2 · June 2024 · Paper 2 · Provincial · 2 marks
3.2 If $3 tan β + 2 = 0$ and $sin β > 0$ , determine without the use of a calculator and with the aid of a sketch, the value of the following:
3.2.2 $13 cos β - 13 sin^{2} β$ (2)
Show the memo (2 ticks)Memo
1. ✓
  Substitution $13 (- \frac{3}{13}) - 13 (\frac{2}{13})^{2}$
  1 mark · Find trig ratios from a sketch
2. ✓
  Answer $= - 3 - 4 = - 7$
  1 mark · Find trig ratios from a sketch
5. Question 3.1.3 · March 2023 · Paper 1 · Provincial · 3 marks
In the diagram, $P (x; - 9)$ is a point in the Cartesian plane such that $OP = 15$ units. $S (- 2; c)$ lies on $OP$ . $R$ is a point on the positive x-axis and $R \hat{O} P = θ$ .
3.1 Determine, with the aid of the diagram, the following:
3.1.3 The value of c.(3)
Show the memo (3 ticks)Memo
1. ✓
  Use tan theta ratio for point SFor point S(-2; c): $tan θ = \frac{c}{- 2}$
  1 mark · Find trig ratios from a sketch
2. ✓
  Equate ratios $\frac{c}{- 2} = \frac{3}{4}$
  1 mark · Find trig ratios from a sketch
3. ✓
  Solve for c $4 c = - 6$
  $c = - \frac{3}{2}$ (or $- 1, 5$ )
  1 mark · Find trig ratios from a sketch
6. Question 3.2.3 · March 2023 · Provincial · 2 marks
In $Δ A BC$ , $\hat{C} = 9 0^{\circ}$ and $\hat{B} = θ$ , $A C = 7$ units, $BC = 5$ units and $A B = 74$ units.

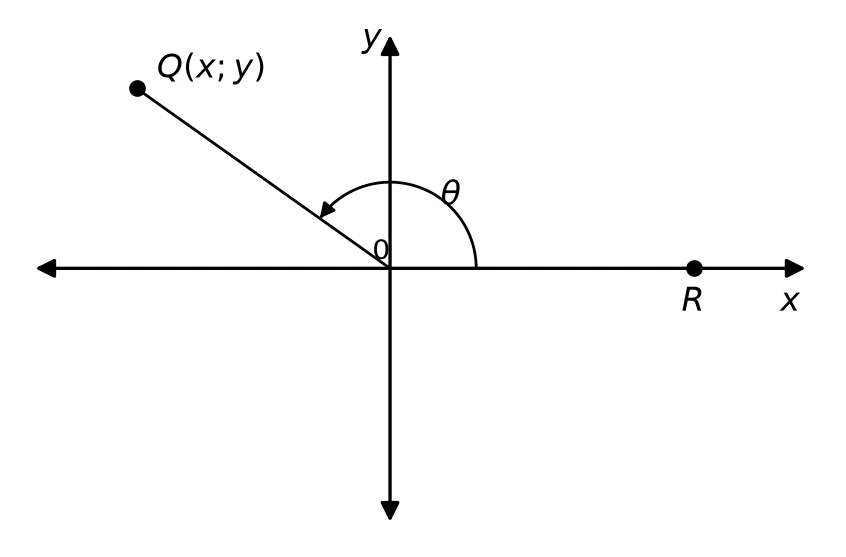

3.2 In the diagram below, $Q (x; y)$ is a point in the second quadrant. $R \hat{O} Q = θ$ and $13 sin θ = 12$ . Make use of the diagram to:
3.2.3 Calculate the value of $5 tan θ + 1$ .(2)
Show the memo (2 ticks)Memo
1. ✓
  Substitute ratio $5 (- \frac{12}{5}) + 1$
  1 mark · Find trig ratios from a sketch
2. ✓
  Calculate $- 12 + 1 = - 11$
  1 mark · Find trig ratios from a sketch
